Hantek HDG2022B Generador de señales Arbitrarias / Funciones 20MHZ


Hantek HDG2022B Generador de señales Arbitrarias / Funciones 20MHZ

HANTEK
HDG2022B

Resolución de 16 bits, tasa de muestreo de 250 ms / s.
64 M de profundidad de memoria.
Salida digital de 16 canales.
Pantalla TFT en color de 7 y 64K, WVGA (800X480)

Hurry! only 1 items left in stock.
448.61 €
542,82 € IVA INCLUIDO
Cantidad

ENVIO 24H

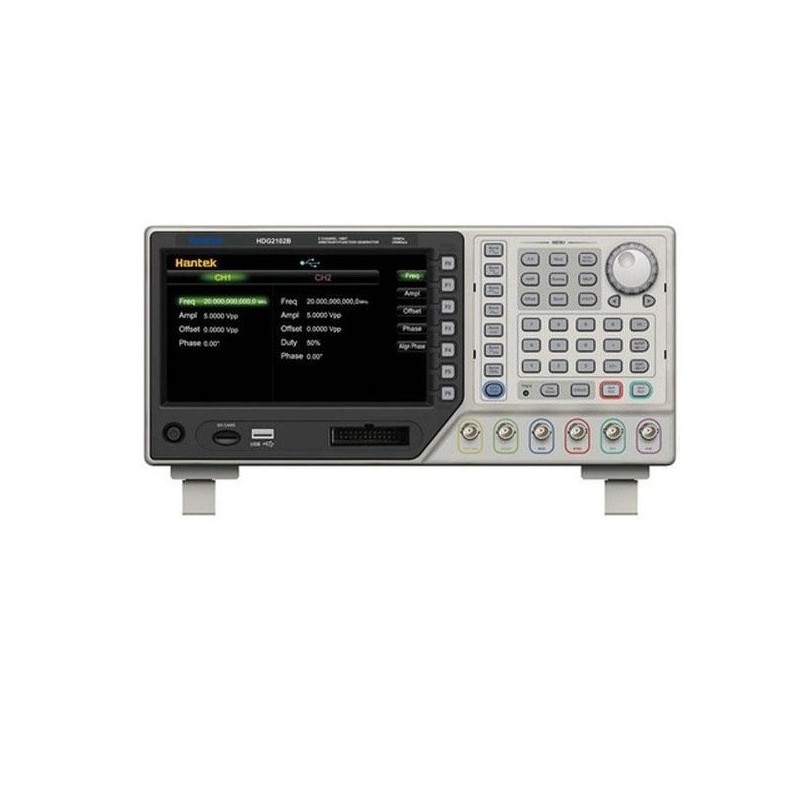

Hantek HDG2022B Generador de señales Arbitrarias / Funciones 20MHZ

  • 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth.
  • 20MHz Max. Sine Output Frenquency.
  • 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice.
  • Support AM, FM, PM, ASK, FSK, PSK and PWM modulations.
  • TCXO timebase standard, OCXO optional for ultra-high stability.
  • 7 inch, 64K true color TFT display, WVGA(800X480).
  • Plenty of interfaces: USB Host, USB Device, LAN.
  • 80M Frequency Counter.

Model HDG2102B HDG2082B HDG2062B HDG2032B HDG2022B HDG2012B HDG2002B
Main Features
Channel 2 2 2 2 2 2 2
Memory Depth 64M 64M 64M 64M 64M 64M 64M
Frenquency 100MHz 80MHz 60MHz 30MHz 20MHz 10MHz 5MHz
Sample Rate 250MSa/s
Voltage Resolution 16Bit
Digital Output 16 Channels output
Frenquency Characteristic
Standard Waveforms Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC
Sine 1uHz~Max.
Square 1uHz~30MHz 1uHz~Max.
Pluse 1uHz~15MHz 1uHz~Max.
Ramp/Triangle 1uHz~4MHz 1uHz~3MHz.
White Noise 1uHz~Max.
Arb. 1uHz~20MHz 1uHz~20MHz 1uHz~20MHz 1uHz~20MHz 1uHz~15MHz 1uHz~10MHz 1uHz~5MHz
Resolution 1uHz
Accuracy ±50ppm, 18~28℃
Sine Wave Spectrum Purity
Harmonic Distortion Typical（0dBm）DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dbc td="">
Total Harmonic Distortion <0.1% (10Hz-20kHz, 0dBm)
Spurious signal Typical(0dBm):≤10MHz: <-65dBc;
(non-hormonic) >10MHz <-65dBc+6dB/spectrum phase
Phase Noise Typical(0dBm,10kHz offset,) 10MHz: ≤-115dBc/Hz
Square
Rise/Down time <10ns td=""> <11ns td=""> <12ns td=""> <14ns td=""> <16ns td=""> <18ns td=""> <18ns td="">
Overshoot <3%(100KHz, 1Vpp)
Duty Cycle ≤10MHz: 20.0%~80.0%; 8.0%~92.0%
10MHz~40MHz: 40.0%~60.0%;
>40MHz: 50.0%
Non-symmetry 1% of period+5ns
Jitter（rms） Typical（1MHz,1Vpp, 50Ω）≤5MHz: 2ppm+500ps; > 5MHz: 500ps
Ramp
Linearity ≤1%(1KHz, 1Vpp)
Symmetry 0%~100%
Pluse
Period 33.33ns~1Ms 40ns~1Ms 40ns~1Ms 50ns~1Ms 50ns~1Ms 100ns~1Ms 200ns~1Ms
Pulse ≥12ns ≥14ns ≥14ns ≥16ns ≥16ns ≥18ns ≥18ns
Leading Edge Time ≥8ns ≥9ns ≥10ns ≥10ns ≥11ns ≥11ns ≥12ns
Overshoot <3%(1VPP)
Jitter（rms） Typical（1MHz, 1Vpp, 50Ω）
≤5MHz 2ppm+500ps
> 5MHz 500ps
Arb. Wavefrom Generator
Waveform Length 64M Point
Vertical Resolution 16 Bit
Sample Rate 250MSa/s
Rise/Fall time Typical(1Vpp):<6ns td="">
Jitter Typical（1MHz, 1Vpp, 50Ω）
≤5MHz 2ppm+500ps;
> 5MHz 500ps
Amplitude characteristic
Amplitude Range ≤20MHz:2mVpp - 20Vpp;≤60MHz:2mVpp -15Vpp;≤80MHz:2mVpp -10Vpp;
≤90MHz:2mVpp - 5Vpp;≤100MHz:2mVpp - 2Vpp
Accuracy Typical（1kHz Sine, 0V deviation, >10mVpp, Auto); ±1% of setting ±2mVpp
Amplitude Flatness ≤10MHz:±0.1dB;≤60MHz:±0.2dB;≤100MHz:±0.4dB
Resolution 1mv or 4 digits
Impedance 50Ω
Offset Characteristic
Range |Voffset| < Vmax – Vpp/2
Accuracy ±(1% of setting + 5mV + 0.5% of amplitude）
Modulation Characteristic
Modulation Type AM, FM,PM,2ASK,2FSK,2PSK,PWM
AM
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Sine, Square, Ramp, Noise, Arb
Frequency 1Hz~500KHz
Depth 0%~120%
FM
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Sine, Square, Ramp, Noise, Arb
Frequency 1Hz~500KHz
Frequency Deviation 0~360
PM
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Sine, Square, Ramp, Noise, Arb
Frequency 1Hz~500KHz
Frequency Deviation 0%~120%
2ASK
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Square of 50% duty cycle
Code Rate 1Hz~500KHz
2FSK
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Square of 50% duty cycle
Code Rate 1Hz~500KHz
2PSK
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Square of 50% duty cycle
Code Rate 1Hz~500KHz
PWM
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Sine, Square, Ramp, Noise, Arb.
Code Rate 1Hz~500KHz
Width Deviation 0% to 100% of Pulse Width
Burst Characteristic
Burst Count 1~2000000000
Gated Source External trigger
Trigger Source Internal, External or Manual
Sweep Characteristics
Type linear
TypeDirection Up
Sweep time 280 000s
Hold/Return time 280 000s
Trigger Source Internal, External, Manual
Mark Falling Edge of Sync signal(programmable)
General Specifications
Interface USB host, USB Device, LAN optional
Display 7’’ 64K Color TFT Display, 800*480
Power Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ; 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Power Consumption <60w td="">
Output Current 0.15A
Size 305mm x 100mm x 130mm(L x W x H)
Weight 3KG
