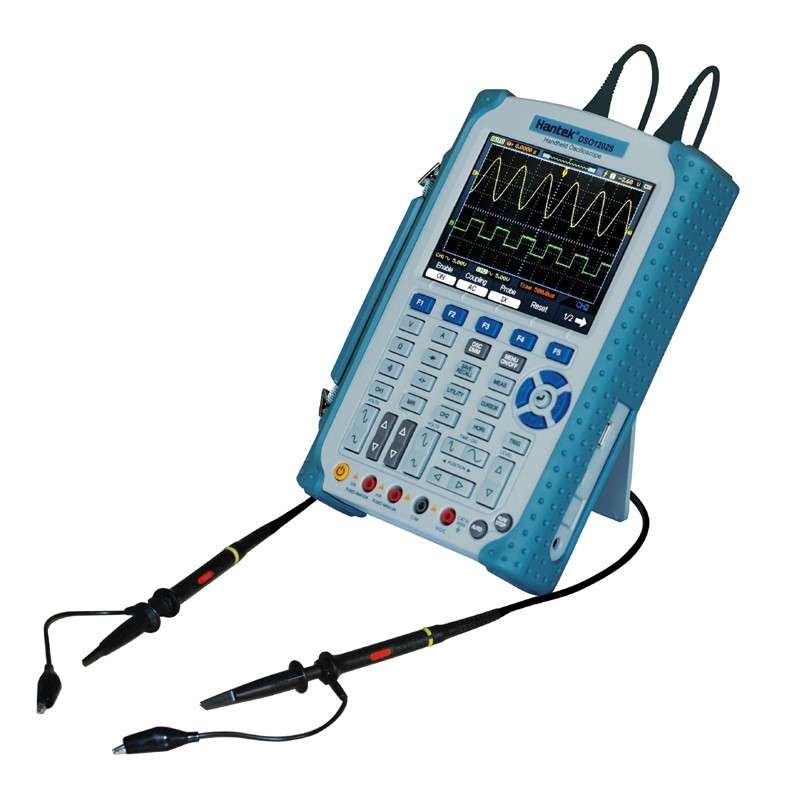

Hantek DSO1152S Osciloscopio Portátil 150MHZ Aislado

Hantek DSO1152S Osciloscopio Portátil 150MHZ Aislado

Marca : HANTEK

Referencia : DSO1152S

Osciloscopio de ancho de banda de 150MHz.
Categoria de aislamiento: 1000V CATII, 600V CATIII.
Frecuencia de muestreo de 1GSa/s.
1M de profundidad de memoria.
6000 cuentas DMM con gráfico de barras analógico.
Pantalla TFT Color LCD de 5.6 pulgadas, alta resolución (640 * 480).

Agotado

867.98 €

1.050,26 € IVA INCLUIDO

Cantidad

CONSULTAR

Pago seguro

Hantek DSO1152S Osciloscopio Portátil 150MHZ Aislado

Isolated level: 1000V CATII, 600V CATIII.
High Bandwidth 150MHz Oscilloscope, 1GSa/s sample rate, 6000 Counts DMM with analog barograph and data recorder.
1M Memory Depth.
High Refresh Rate (2500 frames).
Large 5.6 inch TFT Color Display, High Resolution(640*480), Dual-Window Design --More clear, More detailed.
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
Easy-to-use pop-up menu with built-in multi-language help system.
32 Automatic Measurements.
Waveform Math: Add, Subtract, Multiply, and Divide.
Store and recall over.
XY Mode.
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
Pass-Fail function compares a stored waveform to an unknown input.
Average Mode for smoothing waveforms.
Square Wave Output (2V, 1kHz) for probe adjustment.
USB Host/Device 2.0 full-speed interface, support removeable disk, LAN Option, easy to control by PC or long-distance.
Dimensions (mm):245(L)x163(W)x52(H), be carried easily.

Model	DSO1202S	DSO1152S	DSO1122S	DSO1062S
Bandwidth	200MHz	150MHz	120MHz	60MHz
Channel	2
Real-Sample Rate	1GSa/s
Equivalent Sample Rate	25GSa/s
Record Length	1M
Rish time	≤1.7ns/≤2.3ns/≤2.9ns/≤5.8ns
Timebase Accuracy	±50ppm
Time Base Range	2ns/div-2000s/div	2ns/div-2000s/div	2ns/div-2000s/div	4ns/div-2000s/div
Video Help	--
SD Card	--
Input Impendence	1MΩ
VOLTS/DIV Range	2mV/div ～ 5V/div
A/D Converter	8bit
Position Range	±50V(5V/div), ±40V(2V/div ～ 500mV/div), ±2V(200mV/div ～ 50mV/div), ±400mV(20mV/div ～ 2mV/div).
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
Bandwidth Limit	20MHz
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2
Math	+,-,x,÷,FFT
Cursor Measurement	Voltage difference between cursors: △ V; Time difference between cursors: △ T; Reciprocal of △ T in Hertz (1/ΔT);
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
The float voltage between BNC and Ground	600V CATIII, 1000V CAT II
The float voltage between each Channel	600V CATIII, 1000V CAT II
The float voltage between Multimeter and Ground	1000V
between input Ports directly	400V CAT II
Input by 10:1 probe	600V CATIII, 1000V CAT II
DMM Max. Resolution	6,000 Counts
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC: 600V, DC: 800V
Max. Input Current	AC:10A , DC: 10A
Max. Input Impandance	10MΩ
Display	5.6" TFT 16K Color Display, 640*480 dots
Size	245mm x 163mm x 52mm
Weight	1.3KG(Without Package)
Standard Probe	PP200Bx2	P7150x2	P7150x2	P7060x2

DMM Mode
Max. Resolution	6000 Counts
DMM Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC:600V, DC: 800V
Max. Input Current	AC: 10A, DC:10A
Input Impedence	10MΩ
DMM TrendPlot	1.2M Point
Range	Resolution	Accuracy	Resolution
DC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
AC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
Resistance	600 Ω	±1%±3 digit	0.1Ω
	6.000K Ω		1Ω
	60.00K Ω		10Ω
	600.0K Ω		1KΩ
	6.000M Ω		10KΩ
	60.00M Ω	±1%±5 digit	100KΩ
Capacitance	40.00nF	±2%±5 digit	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	400.0uF		100nF
	Attention: the smallest capacitance value that can be measured in 5nF
Diode	0V~2.0V
ON-OFF test	<10Ω

Marca HANTEK

Referencia DSO1152S

Agotado

Ficha técnica

Canales de Osciloscopio: 2
Ancho de banda de Osciloscopio (MHZ): 150
Multímetro: Si
