Hantek DSO1202BV Osciloscopio Portátil 200MHZ


Hantek DSO1202BV Osciloscopio Portátil 200MHZ

HANTEK
DSO1202BV

Osciloscopio de ancho de banda de 200MHz.
Ayuda de vídeo integrada y memoria flash 2G SD.
Frecuencia de muestreo de 1GSa / s.
1M de profundidad de memoria.
6000 cuentas DMM con gráfico de barras analógico.
Pantalla TFT Color LCD de 5.6 pulgadas, alta resolución (640 * 480).

Out of Stock
765.73 €
926,53 € IVA INCLUIDO
Cantidad

CONSULTAR

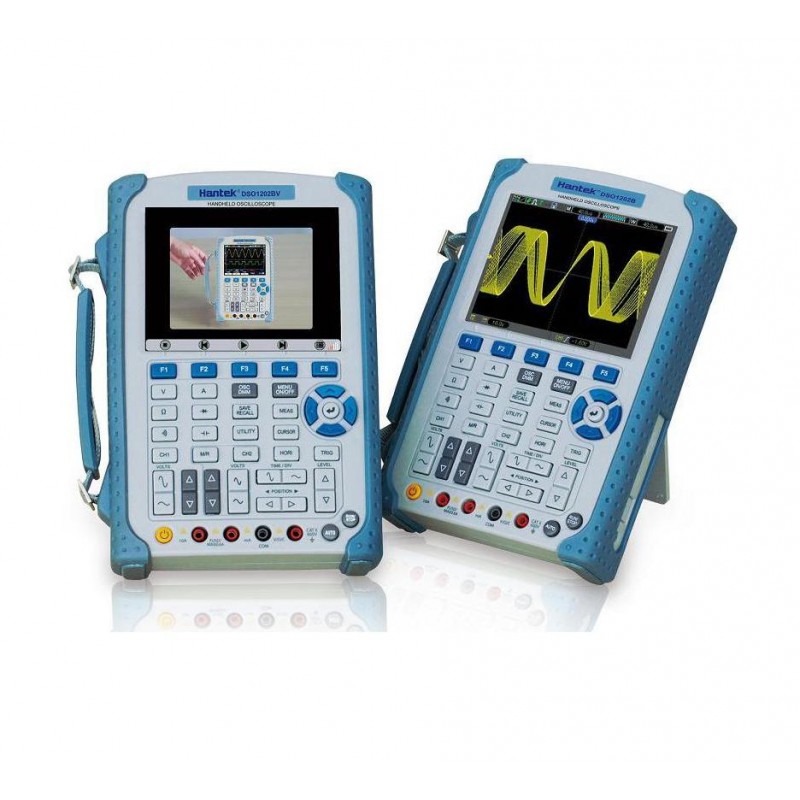

Hantek DSO1202BV Osciloscopio Portátil 200MHZ

  • High Bandwidth 200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
  • Built in Video Help and 2G SD flash memory.
  • 1M Memory Depth.
  • High Refresh Rate (2500 frames).
  • Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
  • One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
  • Easy-to-use pop-up menu with built-in multi-language help system.
  • 32 Automatic Measurements.
  • Waveform Math: Add, Subtract, Multiply, and Divide.
  • Store and recall over.
  • Automatic cursor tracking measurements.
  • XY Mode.
  • Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
  • Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
  • Pass/Fail function compares a stored waveform to an unknown input.
  • Average Mode for smoothing waveforms.
  • Square Wave Output (2V, 1kHz) for probe adjustment.
  • USB Host/Device 2.0 full-speed interface; support removeable disk;  LAN Option, easy to control by PC or long-distance.
  • Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.

Model DSO1202BV DSO1102BV DSO1062BV
Bandwidth 200MHz 100MHz 60MHz
Channel 2
Real-Sample Rate 1GSa/s
Equivalent Sample Rate 25GSa/s
Record Length 1M
Rish time ≤1.7ns/≤3.5ns/≤5.8ns
Timebase Accuracy ±50ppm
Time Base Range 2ns/div-40s/div / 4ns/div-40s/div / 4ns/div-40s/div
Video Help Yes
SD Card 2GB
Input Impandance 1MΩ
VOLTS/DIV Range 2mV/div～5V/div
A/D Converter 8bit
Offset Range ±50V(5V/div), ±40V(2V/div ～ 500mV/div),
±2V(200mV/div ～ 50mV/div), ±400mV(20mV/div ～ 2mV/div)
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2
Math +, -, x, ÷, FFT, Invert
Cursor Measurement Voltage difference between cursors: △ V;
Time difference between cursors: △ T;
Reciprocal of △ T in Hertz (1/ΔT);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
DMM Max. Resolution 6,000 Counts
Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC: 600V, DC: 800V
Max. Input Current AC:10A , DC: 10A
Max. Input Impandance 10MΩ
Display 5.6"TFT 16K Color Display, 640*480 dots
Size 245mm x 163mm x 52mm
Weight 1.3KG(Without Package)
Standard Probe PP200x2 PP150x2 PP80x2
DMM Mode
Max. Resolution 6000 Counts
DMM Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC:600V, DC: 800V
Max. Input Current AC: 10A, DC:10A
Input Impedance 10MΩ
DMM TrendPlot 1.2M Point
Range Resolution Accuracy Resolution
DC Voltage 60.00mV ±1%±3 digit 10uV
600.0mV 100uV
6.000V 1mV
60.00V 10mV
600.0V 100mV
800V 1V
AC Voltage 60.00mV ±1%±3 digit 10uV
600.0mV 100uV
6.000V 1mV
60.00V 10mV
600.0V 100mV
DC Current 60.00mA ±1%±5 digit 10uA
600.0mA ±1.5%±5 digit 100uA
6.000A 1mA
10.00A 10mA
AC Current 60.00mA ±1%±5 digit 10uA
600.0mA ±1.5%±5 digit 100uA
6.000A 1mA
10.00A 10mA
Resistance 600 Ω ±1%±3 digit 0.1Ω
6.000K Ω 1Ω
60.00K Ω 10Ω
600.0K Ω 1KΩ
6.000M Ω 10KΩ
60.00M Ω ±1%±5 digit 100KΩ
Capacitance 40.00nF ±2%±5 digit 10pF
400.0nF 100pF
4.000uF 1nF
40.00uF 10nF
400.0uF 100nF
Attention: the smallest capacitance value that can be measured in 5nF
Diode 0V~2.0V
ON-OFF test <10Ω
HANTEK
DSO1202BV
Out of Stock
Ficha técnica
Canales de Osciloscopio
2
Ancho de banda de Osciloscopio (MHZ)
200
Multímetro
Si

Descargas

Para descargar estos archivos tiene que haber adquirido antes el producto y estar conectado a su cuenta.

(ES) Manual Abreviado

Manual Abreviado de Seguridad y Puesta en Marcha - Español

Descargas (133.77KB)

(EN) Manual abbreviated

Basic Safety Manual and Startup - English

Descargas (158.8KB)
