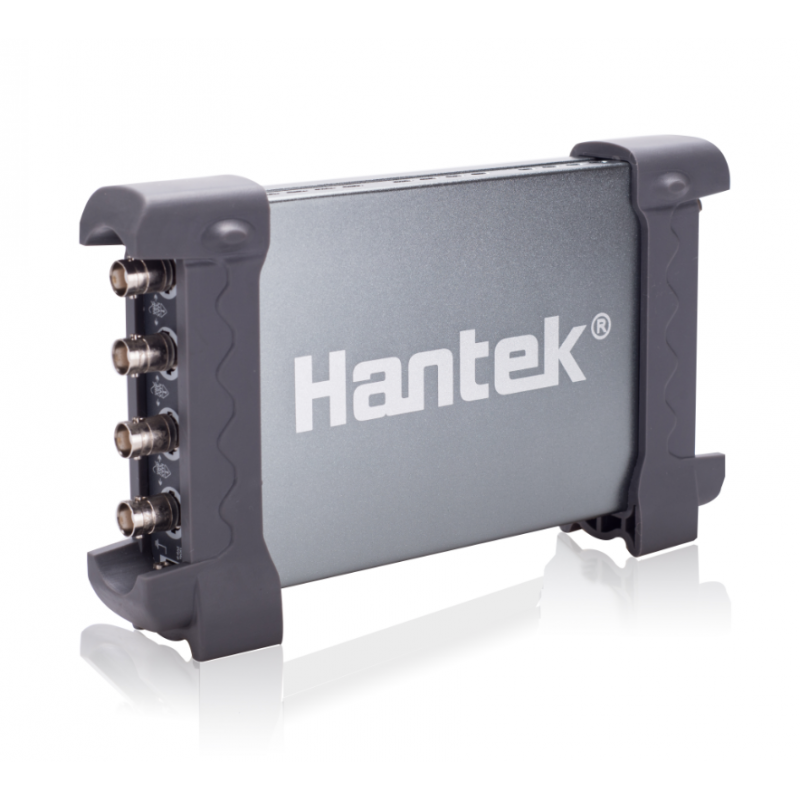

Hantek 6254BD Osciloscopio USB 250 MHZ / 4 Canales y Generador de Señales Arbitrarias / Funciones

·    4CH oscilloscope & function/Arb. waveform generator.

·    The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.

·     Function/Arbitrary Waveform Generator: 200MSa/s DDS, 12bits of vertical resolution, built-in variety of standard waveforms, arbitrary waveform easy to edit, which is convenient to reappear sensor and other irregular signal.

·     Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

·     USB2.0 Interface, plug and play device.

·     Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

·     Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.

·     Software support: Windows10, Windows 8, Windows 7

·     The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.

·     More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

·     Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

·     FFT spectrum analyzer

·     One computer could connect with multiple oscilloscopes, expand the channel number easily.

·     USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.

·     Provide secondary development library DLL; Provide LabviewVBVC developing examples.
