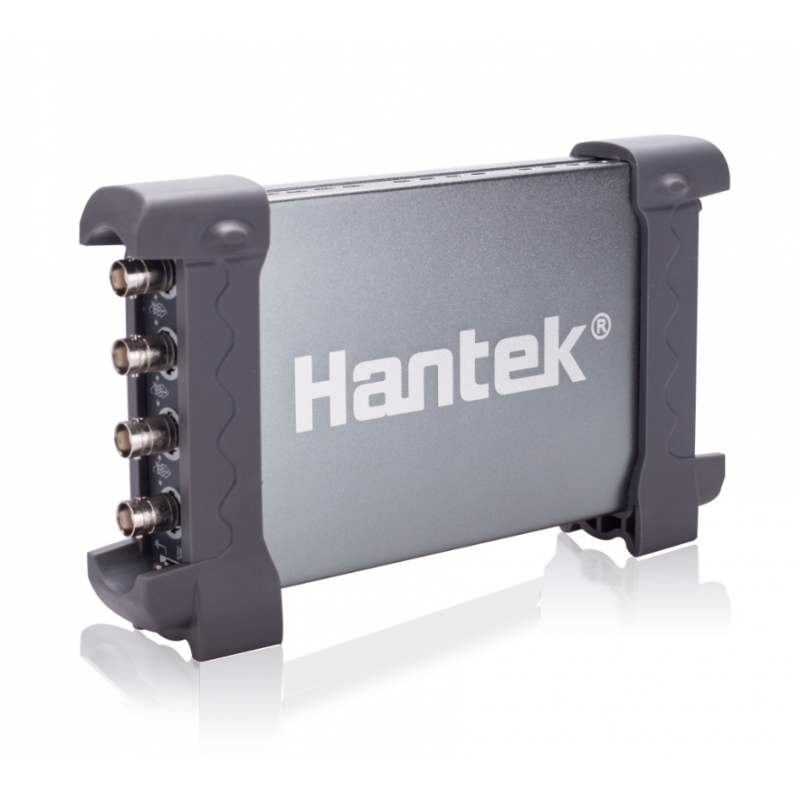

Hantek 6204BC

Osciloscopio de 4 Canales / 200MHZ

· 4CH oscilloscope & function/Arb. waveform generator.

· The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 200MHz bandwidth.

· Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

· USB2.0 Interface, plug and play device.

· Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

· Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.

· Software support: Windows10, Windows 8, Windows 7

· The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.

· More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

· Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form (OPTIONAL).

· Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

· FFT spectrum analyzer

· One computer could connect with multiple oscilloscopes, expand the channel number easily.

· USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.

· Provide secondary development library DLL; Provide LabviewVBVC developing examples.
