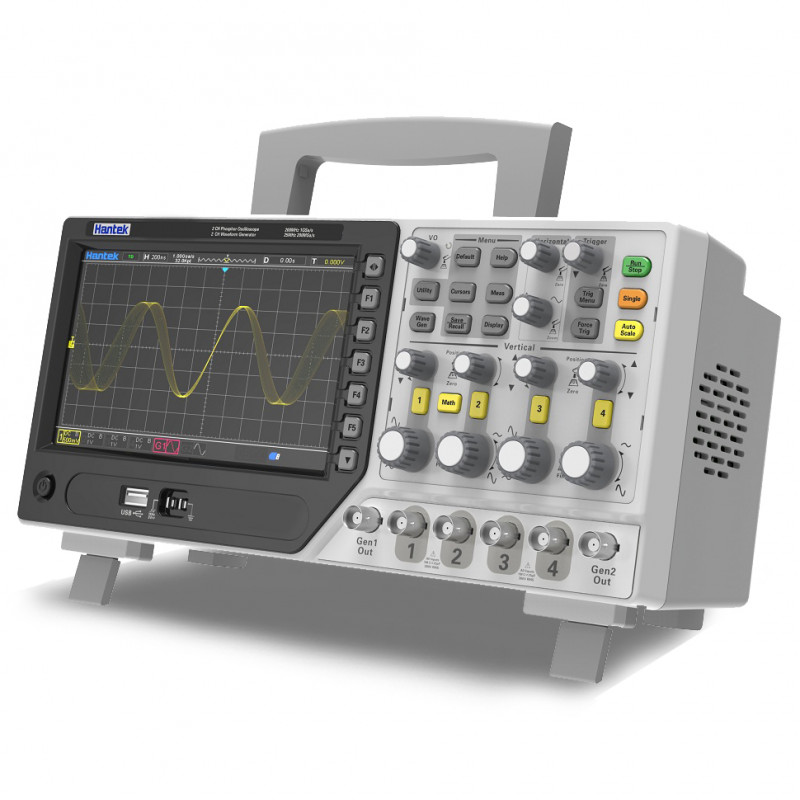

Hantek DPO6104C Osciloscopio 4 canales 100MHZ + 2 Generador AWG

Hantek Serie DPO6000C Osciloscopios de 4 Canales

con 2 Generadores AWG

Features：

• Osciloscopio cinco en uno: osciloscopio de 4 canales + generador de forma de onda de 2 canales + voltímetro digital + analizador de protocolo en serie + análisis espectral FFT.
• Función de adquisición segmentada, soporte para capturar hasta 80,000 secciones.

• Velocidad de captura de forma de onda de 60 000 wfms / s (visualización de puntos) / 400,000 wfms / s (modo de adquisición rápida de visualización de puntos).
• Hasta 16 tipos de funciones de disparo, incluidos 5 tipos de disparadores de protocolo. Suministra 5 opciones de decodificación en serie.
• 1 GSa / s frecuencia de muestreo en tiempo real de los canales analógicos; Profundidad de memoria estándar de 64 Mpts.
• Fuente de señal de 2 canales, 13 tipos de formas de onda en el interior, 4 conjuntos de formas de onda arbitrarias, frecuencia de muestreo de 200M, longitud de onda de 8Kpts.
• 1 frecuencia de muestreo en tiempo real de GSa / s de los canales digitales.
• Bajo ruido base, rango dinámico vertical ultra ancho de 500uV / div a 10 V / div.
• Pantalla táctil capacitiva WVGA de 7 pulgadas, (800 * 480) TFT, con pantalla ultra ancha, imagen vívida, bajo consumo de energía y larga vida útil.
• Medición automática de 42 tipos de parámetros de forma de onda (con estadísticas).
• Medidor de voltaje digital de 5 bits y función de indicador de frecuencia de hardware de 6 bits.
• Función de diagrama de Bode (se pueden usar los osciloscopios con función de fuente de señal).
• Múltiples funciones de operación matemática de forma de onda 【MATH】. Función de búsqueda de eventos.
• Interfaces estándar: dispositivo USB, host USB, LAN, interfaces opcionales: HDMI, UART
• Conforme a los estándares de instrumentos de la clase LXI CORE 2011 DEVICE; permite la creación y reconfiguración rápida, económica y eficiente del sistema de prueba. Admite el control remoto de comandos.

Model comparison

4-channel oscilloscope + 2CH AFG - Digital fluorescence display and color temperature display

Bode diagram function - 256 grade color display

2-channel 25M waveform/Arb generator - Waveform capture rateup to 400,000

FFT function Scales show - Segmented acquisition and history waveform

FFT function - 64M memory depth

7 inch capacitive touch screen - 5 bits digital voltage meter , 6 bits frequency indicator

Parameters

Oscilloscope function
Acquisition	Real-time sample rate		1 GSa/s（single channel） 500 MSa/s（two channels） 250 MSa/s（three/four channels）
			Note：digital channel 12，34 open at the same time,it is considered as one channel
	Peak detection		Analog channel 4ns
			Note：digital channels don’t support
	Average mode		Analog channel
			All channels reach N time samples at the same time，N can be selected from 2、4、8、16、32、 64、128、256、512 and 1024.
			Note：digital channels don’t support
	High resolution		Up to 12bit
			Note：digital channels don’t support
	Minimum test pulse width		8ns
	Memory depth		Single channel 64M
			Two channels 32M
Input	Channel quantity		4 analog channels
			Note：data channels can’t be opened
			3 analog channels
			Note：digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4
			2 analog channels
			Note：digital channels infinitize
			1 analog channel
			Note：digital channels infinitize
			0 analog channel
			Note：digital channels infinitize
	Input coupling		DC、AC or GND
			Note：digital channels don’t support
	Input impedance，DC coupling		Analog channel
			25pF±3 pF，1MΩ±2%
			Digital channel
			(300KΩ±2%) ，(8 pF±3 pF)
	Supported probe attenuation factor		Analog channel 1X、10X、100X、1000X
	Voltage classes		300V CAT II
	Maximum input voltage		Analog channel 300VRMS (10X)
			Digital channel -25V~25V
Horizontal	Waveform interpolation		(sin x)/x
	Maximum record length		Single channel maximum 64M
			Two channels maximum32M
			three/four channels maximum 16M
	Horizontal scale range
			2ns/div~100s/div 1， 2， 5 step by step
	Time base mode		Y-T、X-Y、Roll
	X-Y number		Channel 1,2 1 XY channel、channel3 4 1 XY channel
	Zero offset		±0.5 div× minimum time base gear
	Sample Rate and		±25ppm
	Delay Time Accuracy
	Clock drifting		≤±5 ppm/year
	Delta Time Measurement		single，“acquisition”mode
	Accuracy
	(Full Bandwidth)		±（1 sample interval+100ppm×reading+0.6ns）
			＞16 times averages
			±（1 sample interval+100ppm×reading+0.4ns）
			Sample interval=sec/div÷200
Vertical	Bandwidth（-3db）		DPO6084	DPO6104	DPO6204
			80MHz	100MHz	200MHz
	Vertical resolution		Analog channel 8bit
			Digital channel 1bit
	Vertical scale range		input BNC position is 500μV/div~10V/div
	Position range		500μV/div to 120mV/div，±1V
			122mV/div to 1.2V/div，±10V
			1.22V/div to 10V/div，±50V
	Optional analog bandwidth limitation		Typical 20MHz
	Bass response（-3db）		In BNC position is≤10Hz
	Rising time in BNC position，typical		DPO6084	DPO6104	DPO6204
			≤4.4ns	≤3.5ns	≤1.8ns
	Vertical gain accuracy		In “normal” or “average” acquisition mode，the accuracy of 10V/div to 10mV/div is ±3%
			In “normal” or “average” acquisition mode，the accuracy of 5mV/div to 500uV/div is ±4%.
	DC offset accuracy		±0.1 div±2 mV±1% offset value
	The isolation of channels		DC maximum bandwidth：>40 dB
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger	Trigger level range		±5 divisions from the center of the screen
	Trigger mode		auto、general、single
	Level		CH1~CH4	±4 divisions from the center of the screen
	Holdoff range		8ns~10s
	Trigger level accuracy		CH1~CH4	0.2 div×volts/div within ±4 divisions from the center of the screen
	Edge trigger	Slope	Rising edge，falling edge，rising or falling edge
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
	Pulse width trigger	Polarity	Positive polarity，negative polarity
		Condition(When)	<，>， !=， =
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Pulse width range	8ns ~ 10s
	Video trigger	Signal standard	NTSC， PAL
		Signal source	CH1~CH2
		Synchronization	Scanning line、line number、odd field、even field、all field
	Slope trigger	Slope	rise，fal
		condition(When)	<，>， !=， =
		Signal source	CH1 ~ CH4
		Time range	8ns ~ 10s
	Overtime trigger	Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Polarity	Positive polarity，negative polarity
		Time range	8ns ~ 10s
	Window trigger	Signal source	CH1~CH2~CH3~CH4~LA1~LA4
	Pattern trigger	Pattern	0:low level；1:high level；X:ignore；
		Level（signal source）	CH1~CH4
	Interval trigger	Slope	rise，fall
		condition(When)	<，>， !=， =
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Time rangeTime range	8ns ~ 10s
	Delay trigger	Edge type	Rising edge，falling edge
		Signal source	CH1~CH4
		condition(When)	<，>， !=， =
		Time range	8ns ~ 10s
	Set up hold trigger	Edge type	Rising edge，falling edge
		Signal source	CH1~CH4
		condition(When)	<，>， !=， =
		Time range	8ns ~ 10s
	Runt trigger	Polarity	Positive polarity，negative polarity
		Condition(When)	<，>， !=， =
		Signal source	CH1~CH4
		Time range	8ns ~ 10s
	UART trigger	condition(When)	start、stop、data、odd-even check、reception error
		Signal source(RX/TX)	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Data format	Hex（hexadecimal）
		Data length	1 byte
Data bit width		5 bit， 6 bit， 7 bit， 8 bit
Odd-even check		none、odd、even
Free level		high、low
Baud rate (optional)		110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520 0/230400/380400/460400 bit/s
Baud rate(user-defined)		300bit/s~334000bit/s
LIN trigger	condition(When)	Interval field、synchronization field、ID field、synchronization error、identifier、IDand data
	Signal source	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Baud rate(optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520 0/230400/380400/460400 bit/s
	Baud rate(user-defined)	300bit/s~334000bit/s
CAN trigger	condition(When)	Start bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame data、wrong frame、all errors、answer error、overload frame
	Signal source	CH1~CH4
	Data format	Hex（hexadecimal）
	Baud rate(optional)	10000， 20000， 33300， 500000， 62500， 83300， 100000， 125000 ， 250000， 500000， 800000， 1000000
	Baud rate(user-defined)	5kbit/s~1Mbit/s
SPI trigger	Signal source	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Data bit width	4， 8， 16， 24， 32
IIC trigger	Signal source (SDA/SCL)	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Data index	0~7
	opportunity(condition)	Start bit、stop bit、no response、address、data、restart
Measurement	cursor		Voltage difference between cursors △V
			Time difference between cursors △T
			Reciprocal of △T，in Hertz（1/△T）
	Auto measurement		frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising time、falling time、+ width、- width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase difference、falling edge phase difference、+ duty、- duty、period mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF
	DVM		Data source	CH1，CH2
			Measurement type	DC effective value
				AC effective value
				DC
			Frequency meter	hardware 6 bits frequency meter
Arbitrary waveform generator
Arbitrary waveform generator(for oscilloscopes with signal source channels)	Channel number		2 channels
	Sample rate		200MSa/s
	Vertical resolution		12 bits
	Maximum frequency		25 MHz
	Standard waveforms		sin、square、pulse、triangular，noise、DC
			Sinc、index、semi-distortion、lorentz，dual tone multiple frequency，gauss，ECG
	Arbitrary waveform		Arb1，Arb2，Arb3，Arb4
	Sin		Frequency range	0.1Hz~25MHz
	square/pulse		Frequency range	0.1Hz~10MHz
	triangular wave		Frequency range	0.1Hz~1MHz
	Sampling wave		Frequency range	0.1Hz~1MHz
	Index		Frequency range	0.1Hz~5MHz
	Semi-distortion		Frequency range	0.1Hz~1MHz
	lorentz		Frequency range	0.1Hz~1MHz
	Dual tone multiple frequency		Frequency range	0.1Hz~1MHz
	Gauss		Frequency range	0.1Hz~1MHz
	ECG		Frequency range	0.1Hz~1MHz
	Arbitrary wave		Frequency range	0.1 Hz to 10 MHz
	Waveform length		8KSa
	Frequency		accuracy	100 ppm（<10 kHz） 50 ppm（>10 kHz）
			resolution	0.1 Hz or 4 bits，take the greater one
	Amplitude		Output range	10mV~7Vp-p(high impedance)
				5mV~3.5Vp-p(50Ω)
	DC offset		range	±3.5 V，high impedance
				±1.75 V，50 Ω
			resolution	100 μV or 3 bits，take the greater one
			accuracy	2%（1 kHz）
	Output impedance		50 Ω
General specifications
Display	Display type		7"TFT diagonal liquid crystal
	Display resolution		800（horizontal）*480（vertical）pixels
	Display colour		16 million colours（24 bits true colour）
	Persistence time		minimum、1 s、5 s、10 s、30S、infinite
	Display type		dot、vector
	Display mode		Color temperature，gray scale
	Display brightness		adjustable
	Grid type		adjustable
	Grid brightness		adjustable
Interface	Standard interface		USB Host，USB Device，LAN， EDU signal WIFI
			Aux（trigger output/PassFail ）--only EDU with this interface
	Optional interface		PassFail
			UART
			HDMI
General specifications	Probe compensator output
	Output voltage ，typical		about 2Vpp input≥1MΩ load
	frequency、typical		1kHz
	Power supply		100-120VACRMS(±10%)，45Hz to 440Hz，CATⅡ
			120-240VACRMS(±10%)，45Hz to 66Hz，CATⅡ
	Power consumption		<30W
	Fuse		T，3.15A，250V，5x20mm
	Operating temperature		0~50 °C (32~122 °F)
	Storage temperature		-40~+71 °C (-40~159.8 °F)
	Humidity		≤+104℉(≤+40°C): ≤90% relative humidity
			106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
	Cooling method		convection
	Altitude		Operating and nonoperating	3，000m（10，000 feet）
	Mechanical shock		Random vibration	0.31 g RMS from 50Hz to 500Hz，
				10 minutes on each axis
			Nonoperating	2.46g RMS from 5Hz to 500Hz，
				10 minutes on each axis
			Operating	50g，11ms，half-sine wave
	Mechanical	Size	318 x 140 x 150mm(length x width x height)
		Weight	2900g
