Medidor LCR portátil.
Equipo portátil para la medición de los parámetros de los componentes.
Pequeño tamaño (Similar al de un multímetro).
Mide valores como Inductancia, Capacitancia, Resistencia, etc.
Total autonomía gracias a su batería integrada.

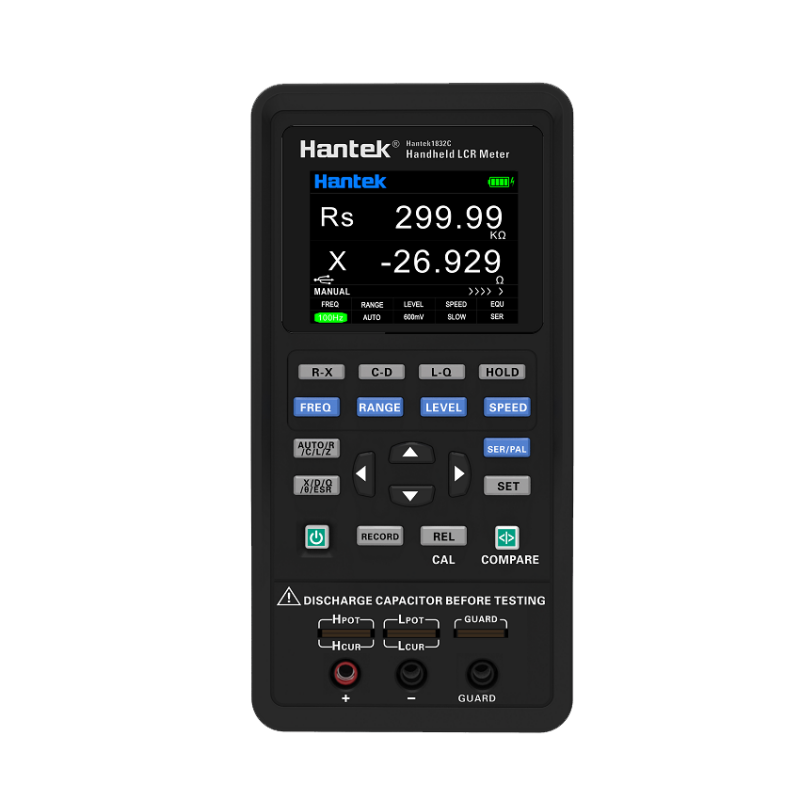

El medidor LCR de mano Hantek 1833C es un versatil instrumento de mano portátil valido para medir parámetros de componentes, como inductancia, capacitancia, resistencia, etc.
Con un tamaño reducido, y total autonomia gracias a su batería de litio de 5 V, puede cumplir con los requisitos de medición de parametros LCR tanto para uso en escritorio como pruebas de campo.
Frecuencias de test de 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz.
Pantalla LCD TFT de 2,8 pulgadas.
Soporte de análisis de registros de datos.
Permite su conexión a un PC y manejo remoto.
Cable de prueba: interruptor de 3 terminales / 5 terminales.
3 velocidades de medición: Alta velocidad / Velocidad intermedia / Baja velocidad.
Selección manual / automático de rango, para toma sencilla de mediciones rápidas.
Incluye funda de protección contra golpes, que proporciona protección integral para el equipo.
Diseño ergonomico.
Medidor LCR de alta precisión:
Diseño compacto:
Teclado sencillo e intuitivo:
Soporte trasero:
Gran pantalla de alta definición con doble visualización:
Carga mediante USB-C estandar y gran autonomía:
Manejo remoto desde PC:
Incluye juego de accesorios:
Software:
Accesorios:
| Model | Hantek1832C | Hantek1833C | ||
| Test frequency |
100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz |
100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz |
||
| Accuracy | 0.30% | |||
| Equivalent Circuit | series, parallel | |||
| Test level | 0.6Vrms | 0.6Vrms, 0.3Vrms | ||
| Measurement way | manual, auto | |||
| Display screen | 2.8 inch TFT LCD | |||
| Measurement parameters | principle parameter: L/C/R/Z deputy parameter: X/D/Q/θ/ESR | |||
| Principle parameter | L/C/R/Z | |||
| Deputy parameter | X/D/Q/θ/ESR | |||
| Inductance Measurement range | (L) 0-2000H | |||
| Capacitance Measurement range | (C) 0-20mF | |||
| Resistance Measurement range | (R) 0-20MΩ | |||
| Measurement speed | high speed(4 times/s), intermediate speed(twice/s), low speed(once/s) | |||
| Reset function | open circuit calibration, short-circuit calibration | |||
| Test terminal configuration | 3 terminal, 5 terminal | |||
| General feature | standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery | |||
| Capacitance C and dissipationD | ||||
| 100Hz/120Hz/400Hz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 20mF | 4.000mF~20.000mF | 8.00%+5 digits | 0.08 | series |
| 4mF | 400.0μF~3.9999mF | 2.00%+3 digits | 0.02 | series |
| 400μF | 40.00μF~399.99μF | 0.60%+2 digits | 0.006 | series |
| 40μF | 4.000μF~39.999μF | 0.40%+2 digits | 0.004 | series |
| 4μF | 400.0nF~3.9999μF | 0.40%+2 digits | 0.004 | ---- |
| 400nF | 40.00nF~399.99nF | 0.4%+2 digits | 0.004 | parallel |
| 40nF | 4.000nF~39.999nF | 0.5%+3 digits | 0.005 | parallel |
| 4nF | 0pF~3.999nF | 1.5%+5 digits | ------ | parallel |
| 1KHz/4kHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 1000uF | 400.0uF~999.9uF | 3.00%+5 digits | 0.03 | series |
| 400μF | 40.00μF~399.99μF | 1.50%+3 digits | 0.015 | series |
| 40μF | 4.000μF~39.999μF | 0.60%+2 digits | 0.006 | series |
| 4μF | 400.0nF~3.9999μF | 0.40%+2 digits | 0.004 | ----- |
| 400nF | 40.00nF~399.99nF | 0.4%+2 digits | 0.004 | parallel |
| 40nF | 4.000nF~39.999nF | 0.6%+3 digits | 0.006 | parallel |
| 4nF | 400.0pF~3.9999nF | 0.6%+3 digits | 0.006 | parallel |
| 400pF | 0.0pF~399.9pF | 3%+5 digits | ------ | parallel |
| 10KHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 100μF | 40.00μF~100.00μF | 4.00%+5 digits | 0.04 | series |
| 40μF | 4.000μF~39.999μF | 2.0%+3 digits | 0.02 | series |
| 4μF | 400.0nF~3.9999μF | 0.60%+2 digits | 0.006 | series |
| 400nF | 40.00nF~399.99nF | 0.4%+2 digits | 0.004 | series |
| 40nF | 4.000nF~39.999nF | 0.4%+2 digits | 0.004 | ------ |
| 4nF | 400.0pF~3.9999nF | 0.4%+2 digits | 0.004 | parallel |
| 400pF | 40.00pF~399.99pF | 0.6%+3 digits | 0.006 | parallel |
| 40pF | 0.00pF~39.99pF | 2.5%+5 digits | ------ | parallel |
| 40KHz/50KHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 100μF | 40.00μF~100.00μF | 6.00%+5 digits | 0.06 | series |
| 40μF | 4.000μF~39.999μF | 4.0%+3 digits | 0.04 | series |
| 4μF | 400.0nF~3.9999μF | 1.0%+2 digits | 0.01 | series |
| 400nF | 40.00nF~399.99nF | 0.6%+2 digits | 0.006 | series |
| 40nF | 4.000nF~39.999nF | 0.6%+2 digits | 0.006 | ------ |
| 4nF | 400.0pF~3.9999nF | 0.6%+2 digits | 0.006 | parallel |
| 400pF | 40.00pF~399.99pF | 1%+3 digits | 0.01 | parallel |
| 40pF | 0.000pF~39.999pF | 3%+5 digits | ------ | parallel |
| 75KHz/100KHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 10μF | 4.000μF~10.000μF | 8.0%+20 digits | 0.08 | series |
| 4μF | 400.0nF~3.9999μF | 5.0%+10 digits | 0.05 | series |
| 400nF | 40.00nF~399.99nF | 1.5%+5 digits | 0.015 | series |
| 40nF | 4.000nF~39.999nF | 1%+2 digits | 0.01 | series |
| 4nF | 400.0pF~3.999nF | 1%+2 digits | 0.01 | ------ |
| 400pF | 40.00pF~399.99pF | 1.5%+2 digits | 0.015 | parallel |
| 40pF | 4.000pF~39.999pF | 2%+5 digits | 0.02 | parallel |
| 4pF | 0.000pF~3.999pF | 5%+10 digits | ------ | parallel |
| Inductance L and quality factor | ||||
| 100Hz/120Hz/400Hz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 1000H | 400.0H~999.9H | 2.00%+3 digits | 0.02 | parallel |
| 400H | 40.000H~399.99H | 0.60%+2 digits | 0.006 | parallel |
| 40H | 4.000H~39.999H | 0.40%+2 digits | 0.004 | parallel |
| 4H | 400.0mH~3.9999H | 0.40%+2 digits | 0.004 | ---- |
| 400mH | 40.00mH~399.99mH | 0.4%+2 digits | 0.004 | series |
| 40mH | 4.000mH~39.999mH | 0.6%+3 digits | 0.006 | series |
| 4mH | 0uH~3.999mH | 3.0%+5 digits | ------ | series |
| 1kHz/4KHz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 1H | 400.0mH~999.9mH | 1.50%+3 digits | 0.015 | parallel |
| 400mH | 40.00mH~399.99mH | 0.4%+2 digits | 0.004 | parallel |
| 40mH | 4.000mH~39.999mH | 0.4%+2 digits | 0.004 | ------ |
| 4mH | 400.0uH~3.9999mH | 0.4%+2 digits | 0.004 | series |
| 400uH | 40.00uH~399.99uH | 0.8%+3 digits | 0.008 | series |
| 40uH | 0.00uH~39.99uH | 3.0%+5 digits | ------ | series |
| 10kHz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 100H | 40.00H~100.00H | 2.0%+3 digits | 0.02 | parallel |
| 40H | 4.000H~39.999H | 0.60%+2 digits | 0.006 | parallel |
| 4H | 400.0mH~3.9999H | 0.40%+2 digits | 0.004 | parallel |
| 400mH | 40.00mH~399.99mH | 0.4%+2 digits | 0.004 | ------ |
| 40mH | 4.000mH~39.999mH | 0.4%+2 digits | 0.004 | series |
| 4mH | 400.0uH~3.9999mH | 1%+3 digits | 0.01 | series |
| 400uH | 0.0uH~399.9uH | 3.0%+5 digits | ------ | series |
| 40kHz/50kHz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 1H | 400.0mH~999.9mH | 2.0%+4 digits | 0.02 | parallel |
| 400mH | 40.00mH~399.99mH | 0.8%+2 digits | 0.008 | parallel |
| 40mH | 4.000mH~39.999mH | 0.8%+2 digits | 0.008 | ------ |
| 4mH | 400.0uH~3.9999mH | 0.8%+2 digits | 0.008 | series |
| 400uH | 40.00uH~399.99uH | 1.5%+3 digits | 0.015 | series |
| 40uH | 0.000uH~39.999uH | 4.0%+5 digits | ------ | series |
| 75KHz/100kHz | ||||
| Range | Display range | Accuracy Le | Accuracy De | Recommended equivalent mode |
| 100mH | 40.00mH~399.99mH | 2.5%+2 digits | 0.025 | parallel |
| 40mH | 4.000mH~39.999mH | 1.5%+2 digits | 0.015 | parallel |
| 4mH | 400.0uH~3.9999mH | 1.0%+2 digits | 0.01 | ------ |
| 400uH | 40.00uH~399.99uH | 1.0%+2 digits | 0.01 | series |
| 40uH | 4.000uH~39.999uH | 1.5%+5 digits | 0.015 | series |
| 4uH | 0.000uH~3.999uH | 4%+10 digits | ------ | series |
| Impedance Z and phase angle | ||||
| 100Hz/120Hz/400Hz/1kHz/10kHz | ||||
| Range | Display range | Accuracy Ze | Accuracy | Recommended equivalent mode |
| 20MΩ | 4.000MΩ~20.000MΩ | 3.0%+10 digits | 3.4° | parallel |
| 4MΩ | 400.0kΩ~3.9999MΩ | 1.2%+3 digits | 0.7° | parallel |
| 400kΩ | 40.00kΩ~399.99kΩ | 0.3%+3 digits | 0.2° | parallel |
| 40kΩ | 4.000kΩ~39.999kΩ | 0.25%+2 digits | 0.1° | ------ |
| 4kΩ | 400.0Ω~3.9999kΩ | 0.25%+2 digits | 0.1° | series |
| 400Ω | 40.00Ω~399.99Ω | 0.25%+2 digits | 0.1° | series |
| 40Ω | 4.000Ω~39.999Ω | 0.5%+3 digits | 0.3° | series |
| 4Ω | 0.4000Ω~3.9999Ω | 2.0%+3 digits | 1.1° | series |
| 0.4Ω | 0.0000Ω~0.3999Ω | 4.0%+3 digits | ------ | series |
| 40kHz/50KHz | ||||
| Range | Display range | Accuracy Ze | Accuracy | Recommended equivalent mode |
| 20MΩ | 4.000MΩ~20.000MΩ | 7.0%+41 digits | 4.0° | parallel |
| 4MΩ | 400.0kΩ~3.9999MΩ | 2.5%+3 digits | 1.4° | parallel |
| 400kΩ | 40.00kΩ~399.99kΩ | 1.0%+4 digits | 0.6° | parallel |
| 40kΩ | 4.000kΩ~39.999kΩ | 1.0%+4 digits | 0.6° | ------ |
| 4kΩ | 400.0Ω~3.9999kΩ | 0.5%+3 digits | 0.3° | series |
| 400Ω | 40.00Ω~399.99Ω | 0.5%+3 digits | 0.3° | series |
| 40Ω | 4.000Ω~39.999Ω | 0.7%+4 digits | 0.4° | series |
| 4Ω | 0.4000Ω~3.9999Ω | 2.0%+6 digits | 1.1° | series |
| 0.4Ω | 0.0000Ω~0.3999Ω | 5.0%+10 digits | ------ | series |
| 75KHz/100kHz | ||||
| Range | Display range | Accuracy Ze | Accuracy | Recommended equivalent mode |
| 20MΩ | 4.000MΩ~20.000MΩ | 9.0%+20 digits | 5.2° | parallel |
| 4MΩ | 400.0kΩ~3.9999MΩ | 4.0%+10 digits | 2.3° | parallel |
| 400kΩ | 40.00kΩ~399.99kΩ | 1.5%+4 digits | 0.9° | parallel |
| 40kΩ | 4.000kΩ~39.999kΩ | 1.0%+2 digits | 0.6° | parallel |
| 4kΩ | 400.0Ω~3.9999kΩ | 0.7%+2 digits | 0.4° | ------ |
| 400Ω | 40.00Ω~399.99Ω | 0.7%+2 digits | 0.4° | series |
| 40Ω | 4.000Ω~39.999Ω | 1.0%+5 digits | 0.6° | series |
| 4Ω | 0.4000Ω~3.9999Ω | 3.0%+10 digits | 1.7° | series |
| 0.4Ω | 0.0000Ω~0.3999Ω | 7%+20 digits | ------ | series |
