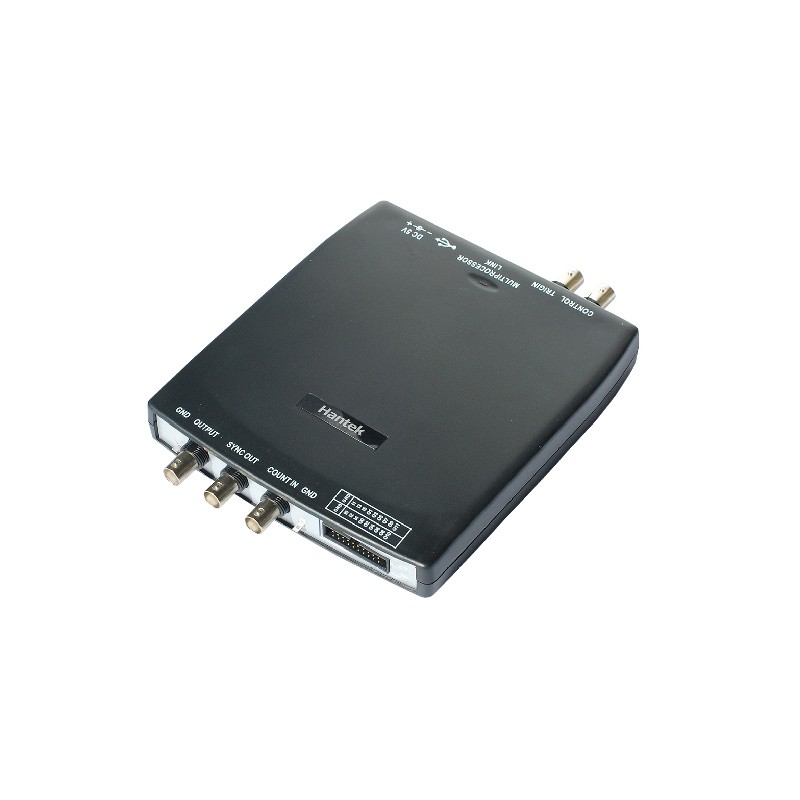

Hantek DDS3X25 Generador de señales Arbitrarias / Funciones

Hantek DDS3X25 Generador de señales Arbitrarias / Funciones

HANTEK
DDS3X25

Generador de señales arbitrarias de 25Mz (onda sinusoidal de hasta 75 Mhz).
200 MSa / s de frecuencia de muestreo, 12 bits de resolución vertical.
Interfaz USB, plug and play, sin necesidad de fuente de alimentación externa, compacto y portátil.

Hurry! only 4 items left in stock.
187.98 €
227,46 € IVA INCLUIDO
Cantidad

ENVIO 24H

Hantek DDS3X25 Generador de señales Arbitrarias / Funciones

Features

  • Cost effective, PC USB Function/Arbitrary Waveform Generator.
  • It can be used to disengage computer. Simulation of sensors and real word signals.
  • It can be used as the other products signal generator module, no need computer. It will produce the needed arbitrary waveform signal when power on.
  • 200 MSa/s of sample rate, 12 bits of vertical resolution.
  • 25Mz Arbitrary waveform output (sine wave up to 75 Mz).
  • One computer can be linked with several DDS-3X25 to expand multi-channels.
  • 50 MHz frequency counter.
  • 12bits pattern generator.
  • USB interface, plug and play, no need external power supply, compact and portable.
  • Operating system: Windows NT, Windows 2000, Windows XP, Windows Vista, Windows 7.
  • Second Design support: LabviewVBVCDelphiC++Build. Provide second design examples.

Arbitrary Waveform Output
Wave frequency DC~25MHz
DAC clock 2K~200MHz adjustable
Channels 1CH waveform output
Waveform Length 4KSa
Vertical Resolution 12 bit
Frequency stabilization 30ppm
Amplitude ±3.5V Max.
Output impedance 50 Ω
Output current 50mA Ipeak=50mA
System Bandwidth 25M
Wave distortion -50dBc(1KHz), -40dBc(10KHz)
Frequency Counter
Frequency area DC~50MHz
Input Amplitude 400mVpp~18Vpp
Coupling DC
Frequency precision ±Time Base Error ±1 Count
Input impedance > 100KΩ
Pattern Generator
Digit 12 Bits Pattern Generator and 6Bit digital In
Type LVCMOS
Working Environment
Temperature 0~70 centigrade
Humidity 0~95%
Weight 0.3Kg

HANTEK
DDS3X25
Hurry! only 4 items left in stock.
Ficha técnica
Generador de señales / Funciones
Si

Descargas

Para descargar estos archivos tiene que haber adquirido antes el producto y estar conectado a su cuenta.

(ES) Manual Abreviado

Manual Abreviado de Seguridad y Puesta en Marcha - Español

Descargas (133.77KB)

(EN) Manual abbreviated

Basic Safety Manual and Startup - English

Descargas (158.8KB)
