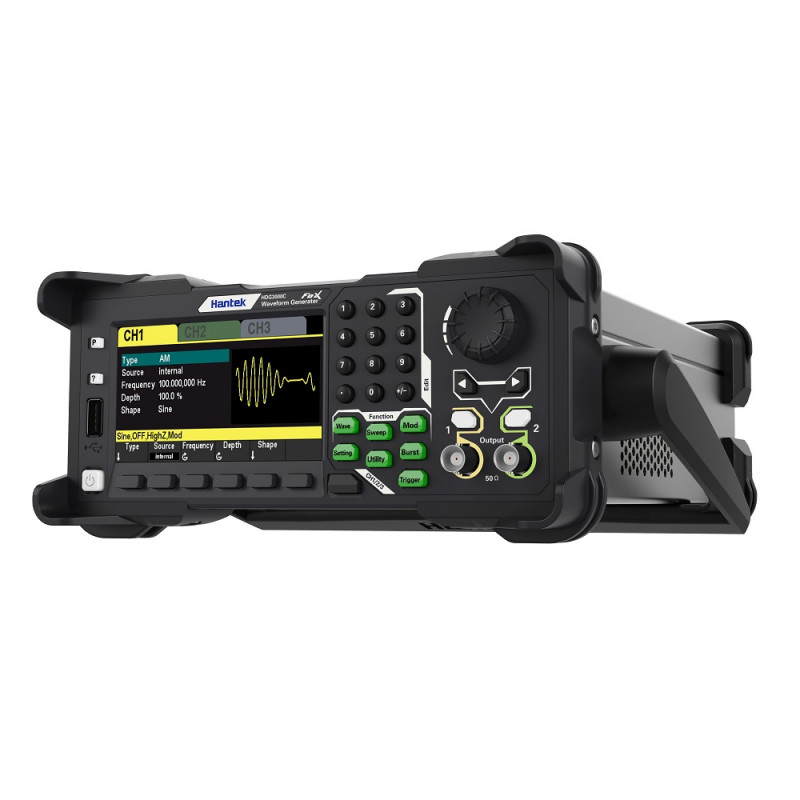

Model
|
HDG3102B
|
HDG3082B
|
HDG3062B
|
HDG3042B
|
HDG3022B
|
HDG3012B
|
|
Channel
|
2
|
|
Wavelength
|
2M
|
|
Frequency range
|
100MHz
|
80MHz
|
60MHz
|
40MHz
|
25MHz
|
15MHz
|
|
Sampling rate
|
300MSa/s
|
|
Voltage resolution
|
16Bits
|
|
Waveform
|
|
Standard waveform output
|
sine wave, square wave, triangular wave, pulse wave, noise, harmonics
|
|
Arbitrary waveform output
|
160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
|
|
Frequency property
|
|

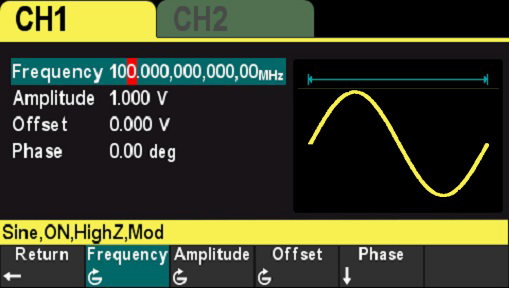

Sine wave
|
1 μHz ~ 100 MHZ
|
1 μHz ~ 80 MHZ
|
1 μHz ~ 60 MHZ
|
1 μHz ~ 40 MHZ
|
1 μHz ~ 25 MHZ
|
1 μHz ~ 15 MHZ
|
|
Square wave
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
|
Pulse wave
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
|
Triangle wave
|
1 μHz ~ 2 MHZ
|
1 μHz ~ 2 MHZ
|
1 μHz ~ 2 MHZ
|
1 μHz ~ 2 MHZ
|
1 μHz ~ 2 MHZ
|
1 μHz ~ 2 MHZ
|
|
Harmonic
|
1 μHz ~ 50 MHZ
|
1 μHz ~ 40 MHZ
|
1 μHz ~ 30 MHZ
|
1 μHz ~ 20 MHZ
|
1 μHz ~ 10 MHZ
|
1 μHz ~ 5 MHZ
|
|
Noise (3 db)
|
100 MHZ bandwidth
|
|
Arbitrary wave
|
1 μHz ~ 20 MHZ
|
1 μHz ~ 20 MHZ
|
1 μHz ~ 20 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
1 μHz ~ 15 MHZ
|
|
Resolution
|
1μHz
|
|
Precision
|
±1ppm, 18~28℃
|
|

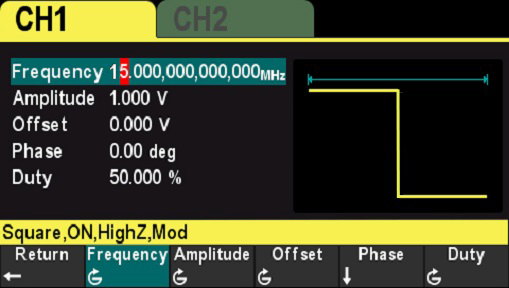

Square wave property
|
|
Rise/Fall time
|
Typical (1kHz, 1Vpp)
|
|
≤9ns
|
|
Overshoot
|
Typical (100kHz, 1Vpp)
|
|
≤5%
|
|
Duty cycle
|
0.001% ~ 99.999%;
|
|
The range varies with the frequency
|
|
Asymmetry
|
1% of the period plus 4ns
|
|

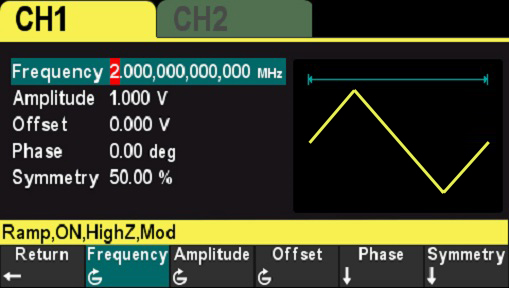

Triangular wave property
|
|
Linear
|
≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
|
|
Symmetry
|
0% ~ 100%
|
|
Impulse wave property
|
|
Cycle
|
67ns~1Ms
|
67ns~1Ms
|
67ns~1Ms
|
67ns~1Ms
|
67ns~1Ms
|
67ns~1Ms
|
|
Pulse
|
≥16ns
|
≥16ns
|
≥16ns
|
≥16ns
|
≥16ns
|
≥16ns
|
|
Rise/Fall time
|
≥9ns (limited by current frequency setting and pulse width setting)
|
|
Overshoot
|
Typical (1kHz, 1Vpp)
|
|
≤5%
|
|

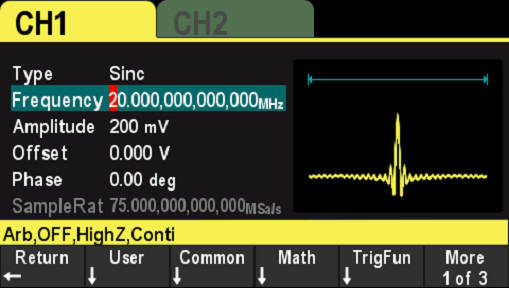

Arbitrary wave property
|
|
Wavelength
|
2M
|
|
Vertical resolution
|
16 Bits
|
|
Sampling rate
|
1μSa/s~62.5 MSa /s, 1μSa/s resolution
|
|
Time of rise/fall
|
Ns of 9 or higher
|
|
Overshoot
|
Typical (1Vpp)
|
|
≤5%
|
|
Harmonic property
|
|
Harmonic frequency
|
≤16
|
|
Harmonic type
|
Even harmonics, odd harmonics, all harmonics
|
|
Harmonic amplitude
|
All harmonic amplitude can be set.
|
|
Harmonic phase
|
All harmonic amplitude can be set.
|
|
Amplitude property (50Ω terminal)
|
|
Amplitude range
|
≤10MHz: 1mVpp ~ 10Vpp;
|
|
≤55MHz: 1mVpp ~ 5.5Vpp;
|
|
≤80MHz:1mVpp ~ 3.5Vpp;
|
|
≤100MHz:1mVpp ~ 2Vpp;
|
|
Precision
|
Typical (1kHz sine wave, 0V offset, > 10mVPP)
|
|
± 1% setting value ± 5mVpp
|
|
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω)
|
≤5MHz: ±0.1dB;
|
|
≤15MHz: ±0.2dB;
|
|
≤25MHz: ±0.3dB
|
|
≤40MHz: ±0.5dB
|
|
40MHz: ±1.0dB
|
|
Unit
|
Vpp, mVpp, Vrms, dBm(50Ω impedance)
|
|
Resolution
|
1mVpp
|
|
Offset property (50Ω terminal)
|
|
Scope
|
±5Vpkac+dc
|
|
Precision
|
±(1% of the setting value + 5mV + 1% of the amplitude)
|
|
Waveform output
|
|
Impedance
|
50 Ω
|
|
Modulation property
|
|
Modulation type
|
AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
|
|

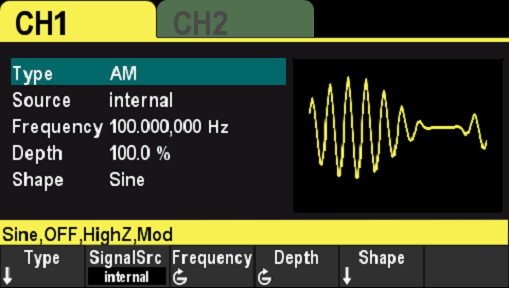

AM
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
Internal, external and other channels
|
|
Modulation wave
|
Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
|
|
Modulation frequency
|
2mHz~1MHz
|
|
Modulation depth
|
0% ~ 120%
|
|
DSB-AM
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
Internal, external and other channels
|
|
Modulation wave
|
Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
|
|
Modulation frequency
|
2mHz~1MHz
|
|
Modulation depth
|
0% ~ 120%
|
|
FM
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
Internal, external and other channels
|
|
Modulation wave
|
Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
|
|
Modulation frequency
|
2mHz~1MHz
|
|
PM
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
Internal, external and other channels
|
|
Modulation wave
|
Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
|
|
Modulation frequency
|
2mHz~1MHz
|
|
Phase deviation
|
0 ° ~ 360 °
|
|
ASK
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
Internal and external
|
|
Modulation wave
|
50% duty cycle square wave
|
|
Modulation frequency
|
2mHz~1MHz
|
|
FSK
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
Internal and external
|
|
Modulation wave
|
50% duty cycle square wave
|
|
Modulation frequency
|
2mHz~1MHz
|
|
PSK
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
Internal and external
|
|
Modulation wave
|
50% duty cycle square wave
|
|
Modulation frequency
|
2mHz~1MHz
|
|
BPSK
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
internal
|
|
Data source
|
PN15, PN21, 01, 10
|
|
Modulation frequency
|
2mHz~1MHz
|
|
QPSK
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
internal
|
|
Data source
|
PN15, PN21
|
|
Modulation frequency
|
2mHz~1MHz
|
|
3FSK
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
internal
|
|
Modulation wave
|
50% duty cycle square wave
|
|
Modulation frequency
|
2mHz~1MHz
|
|
4FSK
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Modulation source
|
internal
|
|
Modulation wave
|
50% duty cycle square wave
|
|
Modulation frequency
|
2mHz~1MHz
|
|
OSK
|
|
Carrier
|
Sine wave
|
|
Modulation source
|
Internal, external
|
|
Shock time
|
8 ns - 4.99975 ms
|
|
Modulation frequency
|
2mHz~1MHz
|
|
PWM
|
|
Carrier
|
Square wave
|
|
Modulation source
|
Internal, external and other channels
|
|
Modulation wave
|
Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
|
|
Modulation frequency
|
2mHz~50KHz
|
|
Duty cycle deviation
|
0% ~ 50%
|
|
External modulation input
|
|
Input range
|
AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc
|
|
ASK, FSK, PSK: TTL level
|
|
Input bandwidth
|
50KHz
|
|
Input impedance
|
10 KΩ
|
|
Sweep frequency property
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Type
|
Linear
|
|
Direction
|
Upward
|
|
Frequency sweep time
|
1ms ~ 50Ks
|
|
Hold/return time
|
0ms ~ 50Ks
|
|
Trigger source
|
Internal, external, manual
|
|
Tag
|
Synchronize the model's falling edge
|
|

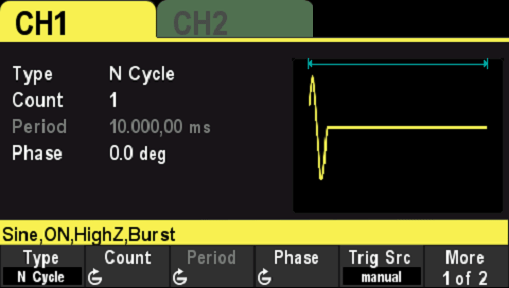

Burst property
|
|
Carrier
|
Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
|
|
Carrier frequency
|
1 μHz ~ 100 MHZ
|
1 μHz ~ 80 MHZ
|
1 μHz ~ 60 MHZ
|
1 μHz ~ 40 MHZ
|
1 μHz ~ 25 MHZ
|
1 μHz ~ 15 MHZ
|
|
Burst counting
|
1 ~ 2000 000 000
|
|
Start/stop phase
|
0 ° ~ 360 °
|
|
Internal cycle
|
2 μs ~ 500 s
|
|
Door control source
|
External trigger
|
|
Trigger source
|
Internal, external, manual
|
|

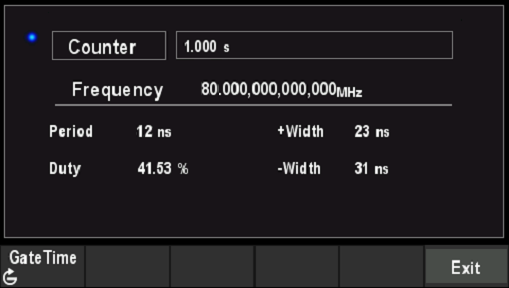

Frequency meter
|
|
Measurement functions
|
Frequency, period, positive/negative pulse width, duty cycle
|
|
Frequency
|
1 μHz ~ 80 MHZ
|
|
Gate time
|
10ms~16s
|
|
Input signal range
|
0 ~ 3.3 V
|
|
Trigger property
|
|
Trigger input
|
|
Level
|
TTL - compatible
|
|
Slope
|
Up or down (optional)
|
|
Pulse width
|
>100ns
|
|
Trigger output
|
|
Level
|
TTL - compatible
|
|
The pulse width
|
>60ns
|
|
Maximum frequency
|
1MHz
|
|
Reference clock
|
|
External reference input
|
|
Lock range
|
10 MHz ± 50 Hz
|
|
Level
|
Low level: 0~400mV, high level: 2.5V~5V
|
|
Locking time
|
< 2 s
|
|
Input impedance
|
50 Ω, DC coupling
|
|
Internal reference output
|
|
Frequency
|
10 MHz + 50 Hz
|
|
Level
|
3.3 Vpp
|
|
Output impedance (typical value)
|
50 Ω, DC coupling
|
|
Synchronous output
|
|
Level
|
TTL - compatible
|
|
Impedance
|
50Ω, nominal value
|
|
General features
|
|
Interface
|
USB Host, USB Device
|
|
Display
|
4.3-inch color TFT LCD screen
|
|
Voltage
|
100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ
|
|
120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ
|
|
Power
|
<30W
|
|
Fuse
|
T, 0.5 A, 250 v, 5 x20mm
|
|
Environment
|
|
Temperature range
|
Operation: 10℃ ~ 40℃
|
|
Non-operation: -20℃ ~ 60℃
|
|
Humidity range
|
≤+104℉(≤+40°C): Relative humidity ≤90%
|
|
106℉~122℉ (+41°C ~50°C): Relative humidity ≤60%
|
|
Altitude
|
Operation: below 3000 meters
|
|
Non-operation: below 15000 meters
|
|
Mechanical specifications
|
|
Dimensions (W × H × D)
|
308mm x 232mm x 110mm
|
|
Weight
|
3.09 KG
|
