| Model |

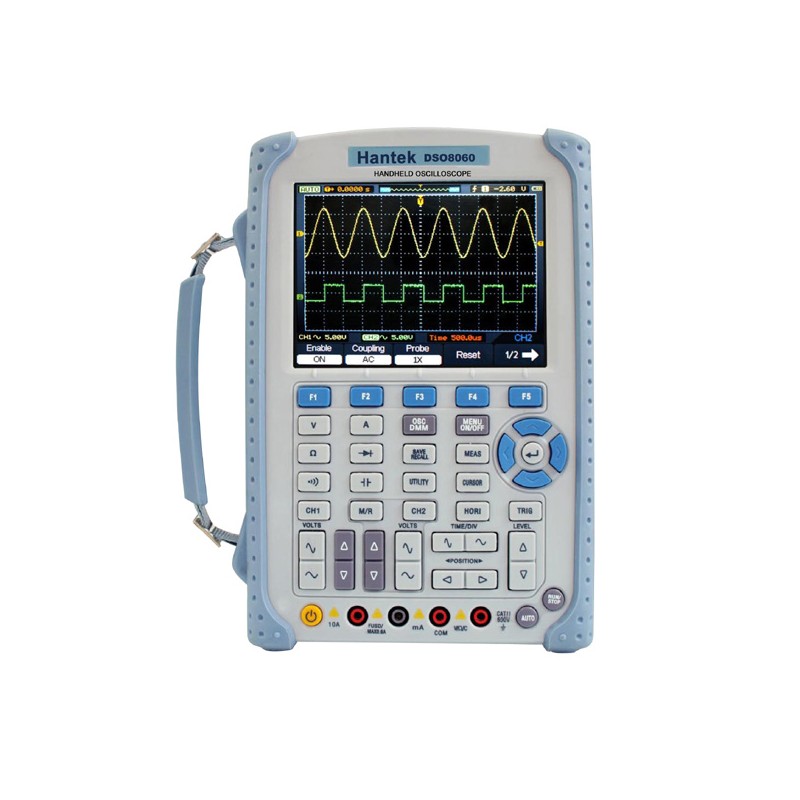

DSO8060 |
| Bandwidth |
60MHz |
| Channel |
2 |
| Real-Sample Rate |
250MSa/s |
| Equivalent Sample Rate |
50GSa/s |
| Record Length |
32K |
| Rish time |
≤5.8ns |
| Timebase Accuracy |
±50ppm |
| Time Base Range |
5ns/div-1000s/div |
| Video Help |
-- |
| SD Card |
-- |
| Input Impandance |
1MΩ ΙΙ 15pF |
| VOLTS/DIV Range |
10mV/div～5V/div |
| A/D Converter |
8bit |
| Position Range |
±50V(5V/div), ±40V(2V/div～500mV/div),
±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div) |
| DC Gain Accuracy |
±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div |
| Bandwidth Limit |
20MHz |
| Trigger Types |
Edge, Video, Pulse, Alternative |
| Trigger Source |
CH1, CH2 |
| Math |
+,-,x,÷,FFT, Invert |
| Cursor Measurement |
Voltage difference between cursors: △V;
Time difference between cursors: △T;
Reciprocal of △T in Hertz (1/ΔT); |
| Auto Measuerment |
Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot |
| Waveform Frequency |
DC~25MHz |
| DAC Clock |
2K~200MHz adjustable |
| Frequency Resolution |
0.10% |
| Channel count |
1CH waveform output |
| Waveform Depth |
4KSa |
| Vertical Resolution |
12 bit |
| Frequency Stability |
<30ppm |
| Waveform Range |
±3.5V Max. |
| Output Impedance |
50 Ω |
| Output Current |
50mA Ipeak=50mA |
| System BW |
25M |
| Harmonic Distortion |
-50dBc(1KHz), -40dBc(10KHz) |
| Frequency Range |
DC~60MHz |
| Input Range |
400mVpp~18Vpp |
| Coupling Mode |
DC |
| Frequency Measurement Accuracy |
±Time Base Error ±1 Count |
| Input Impedance |
> 100KΩ |
| DMM Max. Resolution |
6,000 Counts |
| Testing Modes |
Voltage, Current, Resistance, Capacitance, Diode & Continuity |
| Max. Input Voltage |
AC: 600V, DC: 800V |
| Max. Input Current |
AC:10A , DC: 10A |
| Max. Input Impandance |
10MΩ |
| Display |
5.7" TFT Display, 320*240 dots |
| Size |
245mm x 163mm x 52mm |
| Weight |
1.3KG(Without Package) |
| Standard Probe |
PP80x2 |
