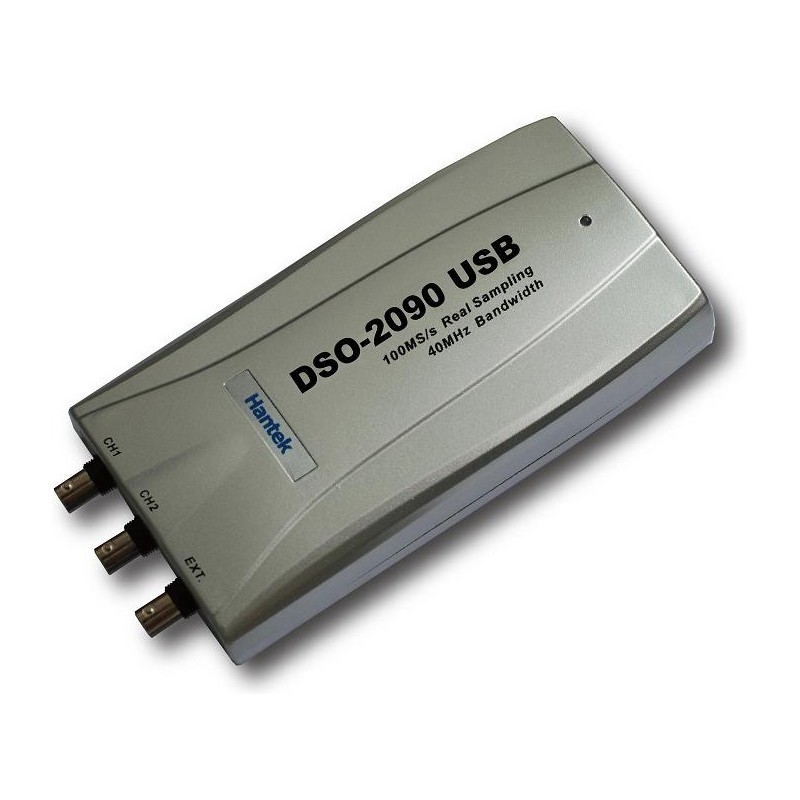

Hantek DSO2090 Osciloscopio USB 40 MHZ / 2 Canales


Hantek DSO2090 Osciloscopio USB 40 MHZ / 2 Canales

HANTEK
DSO2090

Osciloscopio USB para PC de 2 Canales.
Ancho de banda de 40MHZ.
Trigger externo.
Ligero y compacto, convierte cualquier PC en un completo osciloscopio.
Alimentación por USB (No requiere alimentación externa).

Out of Stock
176.51 €
213,58 € IVA INCLUIDO
Cantidad

CONSULTAR

Hantek DSO2090

Osciloscopio de 2 Canales / 40 MHZ

  • USB2.0 interface, no external power source required, easy to use.
  • be suitable for notebook computer，product line maintenance，be used easily on business.
  • Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
  • Operating System: Windows 10, Windows 8, Windows7,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA.
  • 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
  • Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
  • Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
  • FFT
  • One computer can connect many DSO, extend channel easily.
  • Labview,VB,VC,Delphi,C++,Builder, SDK Libraries.

Model DSO2090 DSO2150 DSO2250

DSO5200

DSO5200A
Channel 2 2 2 2 2
Bandwidth 40MHz 60MHz 100MHz 200MHz 200MHz
Max. Sample rate 100MS/s 150MS/s 250MS/s 200MS/s 250MS/s
Rising Time 8.8ns 5.8ns 3.5ns 1.7ns 1.7ns
Impedance 1MΩ 25pF
Coupling AC/DC/GND
Vertical resolution 8Bit 9 Bit
Gain range 10mV-5V, 9 Steps
DC accuracy ±3%
Timebase range 4ns-1h, 38 Steps
Vertical adjustable Yes
Input protection Diode clamping
X-Y Yes
EXT. input Yes
Trigger Mode Auto, Normal and Single
Trigger Slope +/-
Trigger level adjustable Yes
Trigger Type Rising edge, falling edge
Trigger Source CH1, CH2, EXT
Pre/Post trigger 0-100%
Buffer size 64K 64K 1M 64K 1M
Sampling selection Yes
Waveform Display port/line, waveform average, persistence, intensity
Network Open/Close
Vertical mode CH1, CH2, Dual, ADD
Cursor measurement Yes
Math FFT, addition, subtraction, multiplication, division.
Cursor Frequency, Voltage
Accessories S/W CD, probes, manual, USB cord
HANTEK
DSO2090
Out of Stock
Ficha técnica
Canales de Osciloscopio
2
Ancho de banda de Osciloscopio (MHZ)
40
