Model
|

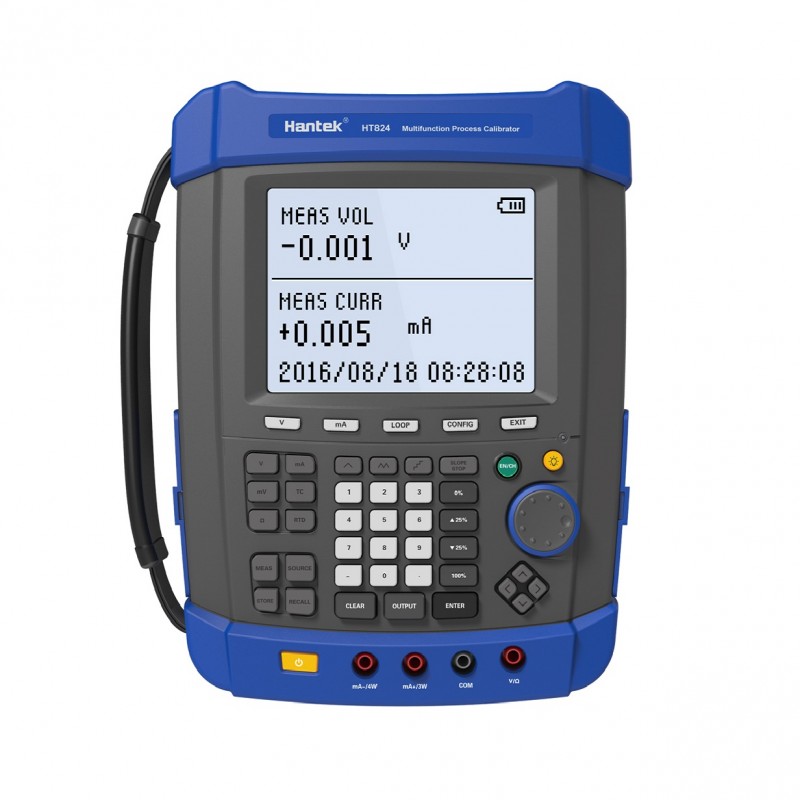

HT824
|
|
DC Voltage Measurement
|
|
Range
|
0-30.000V（Upper part of screen）*1
|
0-24.000V（Bottom of screen）*2
|
0-90.000mV
|
|
Resolution
|
0.001V
|
0.001V
|
0.001mV
|
|
Accuracy
|
0.1%+5
|
0.05%+5
|
0.05%+5
|
|
*1和*2：Input resistance is greater than 1MΩ
|
|
DC Voltage Output
|
|
Range
|
0—20.000V
|
0—90.000mV
|
|
Resolution
|
0.001V
|
0.001mV
|
|
Accuracy
|
0.05%+5
|
0.05%+5
|
|
Millivolt measurement and output*1
|
|
Range
|
-10.000mV—80.000mV
|
|
Resolution
|
0.001mV
|
|
Accuracy
|
0.05%+5
|
|
*1 Press TC(16) to select this function. Signal is at thermocouple micro input/output TC port.
|
|
DC Current (milliampere) Measurement
|
|
Range
|
0—24.000mA（Upper part of screen）*1
|
0—24.000mA（Bottom of screen）*2
|
|
Resolution
|
0.001mA
|
0.001mA
|
|
Accuracy
|
0.05%+5
|
0.05%+5
|
|
DC Current (milliampere) Output
|
|
Range
|
0—24.000mA
|
|
Resolution
|
0.001mA
|
|
Accuracy
|
0.05%+5
|
|
SIMU（Simulation）When outputting current, external voltage is greater than 12V, less than 28V.
|
|
SOUR（Source）When outputting current, signal driving ability is 1000Ω in 20mA.
|
|
Resistance Measurement
|
| <pOhm Range |
|
0—400.00Ω
|
400.0—4000.0Ω
|
|
Accuracy ±Ω
|
4 Wire（4W）
|
0.02%+5
|
0.02%+5
|
|
2 Wire（2W）and 3 Wire（3W）
|
0.05%+5
|
0.05%+5
|
|
Excitation current：0.2mA。
|
|
Maximum input voltage：30V。
|
|
2 Wire：Do not include wire resistance.
|
|
3 Wire：Assume to use the matched testing wire, the total resistance cannot be greater than 100Ω.
|
|
Resistance output
|
|
Range
|
5.00Ω―400.00Ω
|
400.0―1500.0Ω
|
|
Excitation current from the measurement instrument
|
0.15mA-2mA
|
0.05mA-0.8mA
|
|
Accuracy ±Ω
|
0.05%+5
|
0.05%+5
|
|
Resolution
|
0.1Ω
|
0.1Ω
|
|
Temperature - Thermocouple
|
|
Type
|
Range
|
Resolution
|
Measurement and output accuracy ±℃
|
|
S
|
-50.0℃ to 0℃
|
0.1℃/0.1℉
|
2℃
|
|
0℃ to 500.0℃
|
0.1℃/0.1℉
|
1.5℃
|
|
500.0℃ to 1760.0℃
|
0.1℃/0.1℉
|
1.3℃
|
|
R
|
-50.0℃ to 0℃
|
0.1℃/0.1℉
|
2℃
|
|
0℃ to 500.0℃
|
0.1℃/0.1℉
|
1.5℃
|
|
500.0℃ to 1760.0℃
|
0.1℃/0.1℉
|
1.3℃
|
|
B
|
200℃ to 800℃
|
1℃/1℉
|
2.5℃
|
|
800℃ to 1800℃
|
1℃/1℉
|
2.3℃
|
|
K
|
-200.0℃ to 1370.0℃
|
0.1℃/0.1℉
|
1.3℃
|
|
N
|
-200.0℃ to 1300.0℃
|
0.1℃/0.1℉
|
1.3℃
|
|
E
|
-200.0℃ to 1000.0℃
|
0.1℃/0.1℉
|
1℃
|
|
J
|
-200.0℃ to 1200.0℃
|
0.1℃/0.1℉
|
1℃
|
|
T
|
-200.0℃ to 400.0℃
|
0.1℃/0.1℉
|
1℃
|
|
Thermocouple adopts ITS-90
|
|
If open cold junction compensation, there should be additional ±0.5℃
|
|
Temperature – Thermal resistance
|
|
Type
|
|
<p Accuracy ±℃ |
|
Range
|
Testing 4 wire ℃
|
Testing 2 wire and 3 wire ℃
|
Output ℃
|
|
Pt100-385
|
<p-200.0℃-850.0℃ |
0.8℃
|
1℃
|
0.8℃
|
|
Pt100-3926
|
-200.0℃-850.0℃
|
0.8℃
|
1℃
|
0.8℃
|
|
Pt100-JIS
|
-200.0℃-850.0℃
|
0.8℃
|
1℃
|
0.8℃
|
|
Pt200-385
|
-200.0℃-250.0℃
|
0.7℃
|
0.8℃
|
0.7℃
|
|
250.0℃-630.0℃
|
1.3℃
|
2.1℃
|
1.3℃
|
|
Pt500-385
|
-200.0℃-500.0℃
|
0.8℃
|
1.1℃
|
0.8℃
|
|
500.0℃—630.0℃
|
1℃
|
1.5℃
|
1℃
|
|
Pt1000-385
|
-200.0℃-100.0℃
|
0.7℃
|
0.7℃
|
0.8℃
|
|
100.0℃-630.0℃
|
0.7℃
|
0.8℃
|
0.8℃
|
|
Cu100
|
-50.0℃-150.0℃
|
1℃
|
1.2℃
|
1℃
|
|
Cu50
|
-50.0℃-150.0℃
|
1℃
|
1.2℃
|
1℃
|
|
Resolution: 0.1°C, 0.1°F
|
|
Allowable excitation current(output): Pt100-385, Pt100-392, Pt100-JIS, Pt200-385:0.15 to 3.0 mA
|
|
Pt500-385:0.05 to 0.80mA;Pt1000-385:0.05 to 0.40mA
|
|
2 Wire：Do not include wire resistance.
|
|
3 Wire：Assume to use the matched testing wire, the total resistance cannot be greater than 100Ω.
|
|
Comprehensive Index
|
|
Operation temperature
|
0℃ to 50℃
|
|
Storage temperature
|
-20℃ to 70℃
|
|
Operation height
|
Average elevation 3000 meters below.
|
|
Relative humidity (No condensation relative work humidity %)
|
75%(30℃ to 40℃)
|
|
45%(40℃ to 50℃)
|
|
35%(50℃ to 55℃)
|
|
<10℃, no control
|
