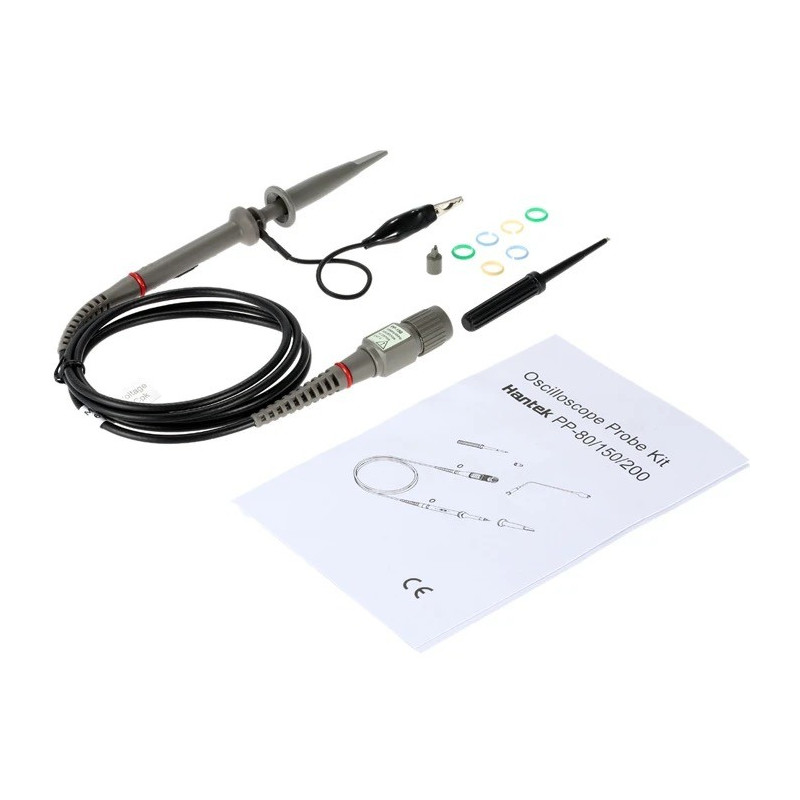

HANTEK PP80
Sonda Osciloscopio 60MHZ Atenuación 1/10
Performance & Characteristics:
● Attenuation ratio: 1× and 10× selectionable.
● Portable design according with ergonomics.
● Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
● Safety standards: it has passed the CE Attestation of European Community.
Application Fields:
● Compatible with any oscilloscope within the frequency range supported.
● Measurement in intermediate and low frequency signals.
Accessories included:
● Operation manual
● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
● Contractive-type acuminate hook.
● 12cm earth wire with alligator clip.
● 4 pairs of colorized cable markers.
● Locating sleeve adapts to IC testing.
| Item |
PP-80
|
PP-90 |
PP-150
PP-150B
|
PP-200
PP-200B
|
| Attenuation |
x1 x10 |
| Input resistance |
1MΩ: 10MΩ |
| Input capacitance |
x1: 85pF-115pF
x10:18.5pF-22.5pF |
x1: 85pF-115pF
x10: 18.5pF-22.5pF |
| Compensation scope |
20pF-40pF |
15pF-40pF |
15pF-35pF |
| System bandwidth |
x1:DC-6MHz;
x10: DC-60MHz |
x1:DC-6MHz;
x10: DC-80MHz |
x1: DC-6MHz
x10: DC-100MHz |
x1: DC-6MHz
x10: DC-200MHz |
| Input voltage |
x1:<200v dc="" peak="" ac="" br=""> x10: <600v dc="" peak="" ac="" td=""> |
| weight |
55g |
| Cable length |
120cm |
| Temperature scope: |
Operation: -10 ℃ --+50 ℃
Not Operation: -20 ℃ --+75 ℃ |
| Humidity |
≤ 85% (Relative humidity) |
