Parameters
|
|
Model
|

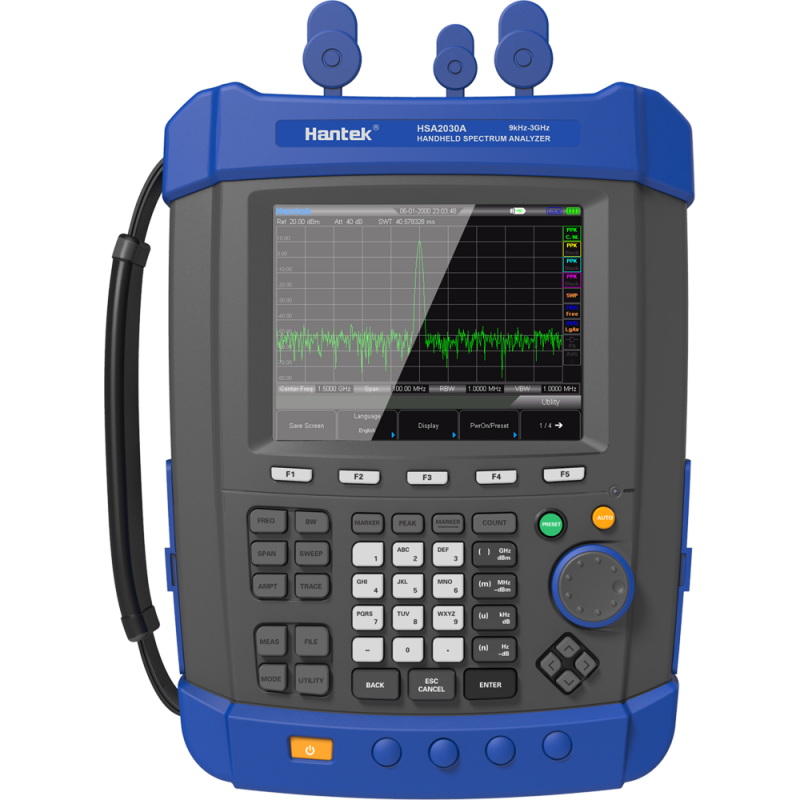

HSA2030A
|
HSA2030B
|
|
Frequency
|
|
Frequency Range
|
9KHz~3.2GHz AC Coupled
|
9KHz~3.2GHz AC Coupled 5M~3.2GHz TG
|
|
Frequency Resolution
|
1Hz
|
|
Reference Frequency
|
10MHz
|
|
Frequency Readout Accuracy
|
±(frequency indication*frequency reference uncertainty+1%*span+20%RBW+marker resolution+1Hz)
|
|
Internal 10MHz Reference
Accuracy
|
Aging rate
|
±1ppm/year （ 0 ℃ ~50 ℃ ， Reference is 25 ℃ ）
|
|
Temperature stability
|
±1ppm/year
|
|
Marker Resolution
|
(Frequency span)/(number of sweep points-1)
|
|
Resolution Bandwidth （ RBW ）
|
|
-3dB Bandwidth
|
10Hz to 1MHz ， 1-3-10 sequence
|
|
Accuracy
|
±5% RBW=10Hz~1MHz nominal
|
|
Resolution Filter Shape Factor
|
＜ 5:1 nominal
|
|
Video Bandwidth （ VBW ）
|
-3dB bandwidth
|
1Hz to 1MHz ， 1-3-10 sequence
|
|
Accuracy
|
±10% VBM=1Hz~1MHz nominal
|
|
Displayed Average Noise Level (normalized to1Hz)
|
|
9K~1MHz
|
Preamp off
|
-108dBm ， typical -127dBm
|
|
1MHz ~10MHz
|
-128dBm ， typical -146dBm
|
|
10MHz ~500MHz
|
-142dBm ， typical -146dBm
|
|
500MHz ~2.5GHz
|
-141dBm ， typical -145dBm
|
|
2.5GHz ~3.2GHz
|
-140dBm ， typical -144dBm
|
|
9K~1MHz
|
Preamp on
|
-131dBm ， typical -150dBm
|
|
1MHz ~10MHz
|
-148dBm ， typical -163dBm
|
|
10MHz ~500MHz
|
-161dBm ， typical -164dBm
|
|
500MHz ~2.5GHz
|
-159dBm ， typical -162dBm
|
|
2.5GHz ~3.2GHz
|
-158dBm ， typical -161dBm
|
|
SSB Phase Noise
|
|
Carrier Offset(20 ℃ ~
30 ℃， 500MHz
Central Frequency ）
|
10K
|
< -92 dBc/Hz, typical -95 dBc/Hz
|
|
30K
|
< -93 dBc/Hz, typical -96 dBc/Hz
|
|
100K
|
< -95 dBc/Hz, typical -97 dBc/Hz
|
|
1MHz
|
< -117 dBc/Hz, typical -119 dBc/Hz
|
|
Sweep Time
|
|
Range
|
Span >100Hz
|
2ms to 1000s
|
|
Span =0Hz
|
600ns to 200s
|
|
Sweep Mode
|
Continuous, single
|
|
Trigger Source
|
Free run; video; external
|
|
Trigger slope
|
Selectable positive or negative edge
|
|
Trigger delay
|
Span =0Hz
|
±12ms to ±12s nominal
|
|
Frequency Counter
|
|
Counter Resolution
|
1Hz
|
|
Accuracy
|
± (marker frequency × frequency reference uncertainty + counter resolution)
|
|
Level Display Range
|
|
Log Scale and Units
|
1 to 10 dB/divisions in 1, 2, 5, 10 dB steps, 10 divisions displayed
|
|
Linear Scale and Units
|
0 to 100% ， 10 divisions displayed
|
|
Scale Unit
|
dBm ， dBmV,dBuV,Watts ， Volts
|
|
Sweep (Trace) Points
|
461
|
|
Number of Markers
|
4
|
|
Detectors
|
Normal, positive peak, dample, negative peak, RMS
|
|
Number of Traces
|
4
|
|
Trace Functions
|
Clear/write, maximum hold, minimum hold, average, check ， close
|
|
Level Measurement Error
|
± 1.5dB(excluding input VSWR mismatch)
20~30 ℃， peak detector, preamplifier off, input signal -50dBm to 0dBm
|
|
Reference Level
|
|
Setting Range
|
-100dBm to +30dBm, steps of 1dB
|
|
Setting Resolution
|
Log scale
|
0.01dB
|
|
Linear scale
|
Almost log （ 2.236μV to 7.07V ）
|
|
Amplitude
|
|
Maximum Safety Input Level
|
Average continuous power
|
+33dBm
|
|
DC input voltage
|
50Vdc
|
|
Measurement Range
|
9KHz~2MHz
|
Displayed average noise level (DANL) to +10dB
|
|
2MHz~3.2GHz
|
Displayed average noise level (DANL) to +20dB
|
|
Input attenuator range
|
0 to 51dB,1dB steps
|
|
Spurious Response
|
|
Second Harmonic Distortion （ SHI ）
|
<65dBc ， 50MHz to 3.2GHz （ Mixer level -30dBm ， attenuator =0dB ， preamp off ， 20 ℃ ~30 ℃ ）
|
|
Third-Order
Intermodulation （ TOI ）
|
50~300MHz
|
+8dBm ， Third-order intermodulation products ： 2 x -20dBm; frequency separation 100KHz ： attenuation = 0dB; preamp off ， 20 ℃ ~30 ℃
|
|
300MHz~3.2GHz
|
+10dBm
|
|
Input Related Spurious
|
<-75dBc ， (input mixer = -30dBm)
|
|
Inherent Residual Response
|
<-90dBm ， typical -98dBm (Input terminated and 0 dB RF attenuation, preamplifier off)
|
|
RF Input VSWR
(at Tuned Frequency)
|
10MHz to 3.2GHz
|
＜ 1.5:1, nominal Attenuator setting 10~20dB
|
|
10MHz Reference/External Trigger Input
|
|
Reference Iinput Frequency
|
10MHz
|
|
Reference Input Amplitude
|
0~10dBm
|
|
Trigger Voltage
|
5V TTL level
|
|
Connector and Output Impendence
|
N female ；（ 50Ω ）
|
|
Gennral Feature
|
|
Interface Language
|
English ， Chinese ， Chinese Traditional
|
|
Display Index
|
5.7 inch ， 640*480 resolution ， 64M color LCD display
|
|
Temperature Range
|
Working
|
-10 ℃ to +50 ℃ ，（ battery ： 0 ℃ to 50 ℃ ）
|
|
Storage
|
-40 ℃ to +70 ℃ ，（ battery :-20 ℃ to 50 ℃ ）
|
|
Relative Humidity
|
<95%
|
|
Weight
|
2.9kg （ with battery ）， 2.6kg （ without battery ）
|
|
Size
|
260m X 220m X 75m
|
|
Power
|
Input voltage range
|
DC: 12-17V, maximum 2.8A input 220VAC±15%
|
|
AC frequency range
|
40Hz to 60Hz
|
|
Power consumption
|
Maximum 32 W
|
|
|
|
|
